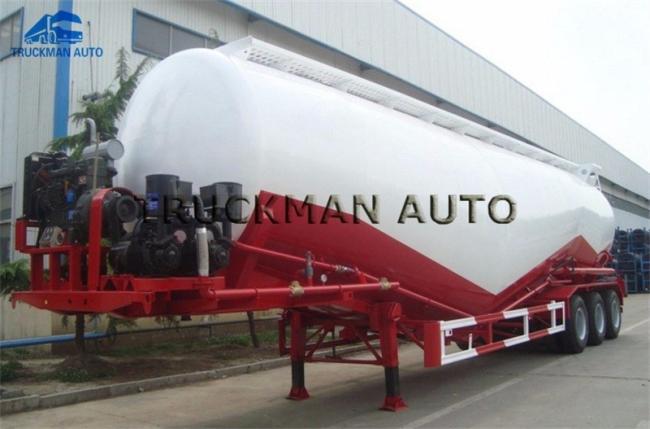

Carbon Steel Cement Tanker Trailer Big Loading Tanker Body Strong Strength
-1. 50m3 Dry Bulk Cement Tanker Trailer Main Specification.
-. Big loading tanker body, from 35m3 to 50m3.
-. With FUWA, BPW brand axles, 13 tons to 16 tons.
-. 12.00R20, 315/80R22.5, 12R22.5 model tire, with LINGLONG and TRIANGLE brand.
-. WABCO brake system and 4M/4S ABS confirm the driving safety.
| Product Name | Bulk Cement Tanker Trailer |
| Material | Carbon steel |
| Size | 12.4*2.5*1.55M |
| Main Beam | 400mm-550mm |
| Axle Brand | 13Ton Axle FUWA Brand(BPW/HJ/JINSHENG Axle) |
| Departure Angle | 16 |
| Suspension | Steel Leaf Spring Suspension/Air Suspension/Mechanical Suspension |
| Landing Gear | 28Ton Jost/FUWA Dual-Speed landing gear |
| Tire Size | 1100R22.5 12R22.5 |
| Tire Brand | Triangle/Chengshan/Linglong/DoubleCoin |
| Leaf Spring | 90(W)mm*13(Thick)mm*10 Layer |
| 10/10/10 leaf spring suspension | |
| The Material Of Main Beam | Q345B carbon steel |
| 16mm,down plate is 18mm, middle plate is 10 mm. | |
| Side Beam Q235 | 16# channel steel |
| Platform Plate | 3mm Diamond plate |
| Twist Lock | 12 Units |
| Traction Pin | 2” or 3.5” |
| Spare Wheel Bracket | 2 pieces |
| Tool Box | 1 Standard |
| Function | Transport 20ft 40ft Container |
| Brake System | RE6 relay valve ;T30/30 spring brake chamber; |
| 40L air tanks | |
| Dual Line braking system | |
| Brake Air Chamber | Six double chamber |
| Electrical System | 1. Voltage: 24v 2. Receptacle: 7 ways (7 wire harness) |
| Tail lamp with turn signal, brake light & reflector, side lamp etc. | |
| One set 6-core standard Cable. | |
| Painting | Anti-corrosive and final paint |
| Packing | Complete Chassis sand blasting to clean rust, 1 coat of antirust prime, |
|
2 coats of final paint |
-2. FAQ
-. Terms of paymemt.
30% as the deposit by T/T, 70% balance before delivery.
-. What’s your MOQ?
One unit trailer or truck. But suggest two trailers one time to save the freight.
-. Whats your delivery time.
20-25 working days after received the deposit.
-. What is your terms of shipment?
The trailer could arrange shipment by ro-ro ship, bulk cargo vessel, container etc.
-. Can you accept the custom made?
Definitely! We could design the trailer according to your request.
-. What’s your warranty?
All of our trailers meet the CIQ, SGS, BV, ADR, FORM E quality certificate, and we will supply one year warranty for the trailers.
