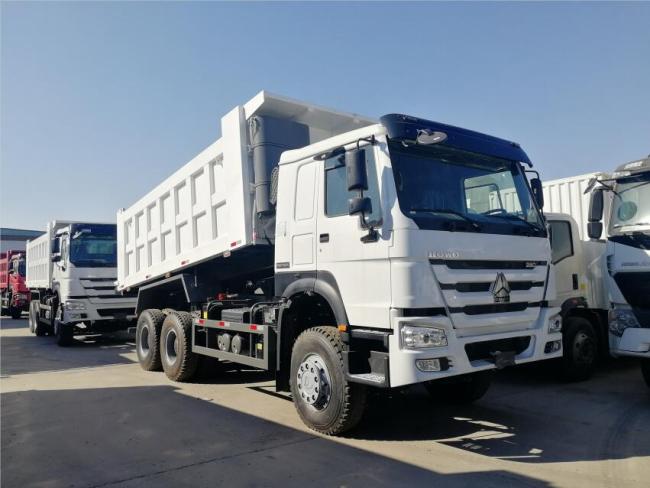

18.63 Cbm Cargobox Howo 6x4 Dump Truck D10.38-40 Euro IV Emission Standard
FAQ:
Where is your company location?
Jinan Truckman Automobile Co.,Ltd located in Jinan City Shandong Provoince China,which is called spring city cause of its famous spring Water. Jinan City is a city of Heavy duty truck where the Sinotruck is.So Jinan has a advantage of Sinotruk and Semi Trailers exporting.
1. What is your Terms of Payment?
We accept TT Terms of payment, 30% in advance as deposit,balance before shipment.
2. What is the Terms of Shipment?
RORO/BULK/FLAT ROCK/Container for your option
3. How can I visit your Company?
you can fly to Guangzhou city then transit to Jinan City by air that need a 2 and half hours
you can fly to Beijing city then transit to Jinan City by air needed 1 hour or Bullet Train that need 2 Hours
you can fly to Shanghai city then transit to Jinan City by air needed 1 and half hours or Bullet Train needed 4 Hours
4. Which China Seaport you will load?
Tianjin,Qingdao,Shanghai,Lianyungang port and All China Border Cities.
5. What is the warranty?
1 year or 100000 kms warranty once engine assy,gearbox assy,chassis assy and cabin assy come to quality problem after our tech center confirm we will take charge of it exception human beings operation.
Euro 4 Emission Howo Heavy duty dump truck 6x4 20-30 Tons 18CBM Bucket
| Engine Details | D10.38-40 Euro IV emission standard |
| Clutch | Single-plate dry coil-spring clutch, diameter 420 mm, hydraulically operating with air assistance |
| Transmission | DC transmission, model HW19710, synchromesh, 10 forward & 2 reverse |
| Propeller Shaft | Double universal joint propeller shaft with gear-shaped coupling flange |
| Front Axle | Steering with double T-cross section beam |
| Rear Axles | Pressed axle housing, single reduction with hub reduction and with differential locks between axles and wheels Ratio: 5.73 |
| Chassis | U-profile parallel ladder frame with section of 300x80x8 mm and reinforced subframe |
| Steering | Z F Brand |
| Cargobox | 5400*2300*1500mm bottom 8mm side 6 ventral lifting |
| Cabin | HW76,One Bed, AC |
Clutch:Single-plate dry coil-spring clutch, diameter 420 mm, hydraulically operating with air assistance
Transmission:DC transmission, model HW19710, synchromesh, 10 forward & 2 reverse
Propeller Shaft:Double universal joint propeller shaft with gear-shaped coupling flange
Front Axle
Steering with double T-cross section beam
Rear Axles
Pressed axle housing, single reduction with hub reduction and with differential locks between axles and wheels
Ratio: 5.73
Chassis
Frame: U-profile parallel ladder frame with section of 300x80x8 mm and reinforced subframe, all cold riveted cross members
Front suspension: 9 semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer
Rear suspension: 12 leaf semi-elliptic springs with bogie springs
Fuel tank: 200 I capacity with locking fuel cap, fitted to the off side of the chassis
Spare wheel
