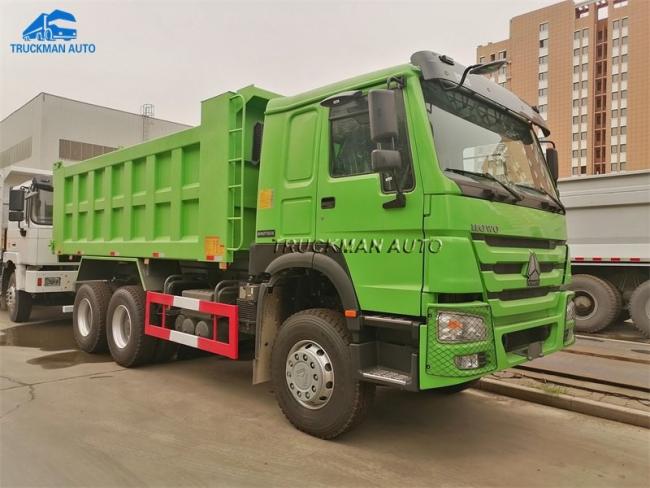

18 Cubic Meter Ten Wheeler Dump Truck SINOTRUK HOWO 371HP 6x4
-1. 18 Cubic Meter SINOTRUK HOWO 6x4 Dump Truck Detail.
SINOTRUK HOWO 6x4 dump truck can used for the construction and mining material transport, the cargo box
of tipper truck material adopt the high strength steel, the thickness of cargo box depend on the cargo type,
like transport big stone, we will suggest the thickness of cargo box is bottom 12mm, side 10mm etc.
-2. 18 Cubic Meter SINOTRUK HOWO 6x4 Dump Truck Main Specification.
| Description | Parameter value |
| Product Name | 18 Cubic Meter SINOTRUK HOWO 6x4 Dump Truck |
| Application | For civil engineering and mining sanitation |
| Engine | WD615.47, 371HP, EURO 2 |
| Cabin | HW76, with one bed, A/C |
| Gearbox | HW19710, 10 forward and 2 reverse gear |
| Cargo Box | 5400x2300x1450mm, 18 cubic meters |
| Tire | 12.00R20, 10+1 pcs, TRIANGLE brand |
| Front Axle | HF9, 9 tons axle, 9000kg |
| Drive Axle | HC16, 16 tons axle, 2x16000kg |
| Oil Tank | 300L |
| Max Speed | 75km/h |
| Dimension | 8350x2560x3450mm |
The 18 Cubic Meter SINOTRUK HOWO 6x4 dump truck specification is only for reference, we could recommend
the other model SINOTRUK HOWO 6x4 dump truck according to your request.
-3. 18 Cubic Meter SINOTRUK HOWO 6x4 Dump Truck Driving Axle.
Our SINOTRUK HOWO 6x4 dump truck driving axle have two model, the common axle model is HC16, this
axle loading tons reach to 16000kg. There are also another model axle AC16, design for the bad working condition,
improve the truck chassis pass ability. Such as truck will work at mine site, AC16 driving axle will be good choice.
The picture of two model axle as follow:

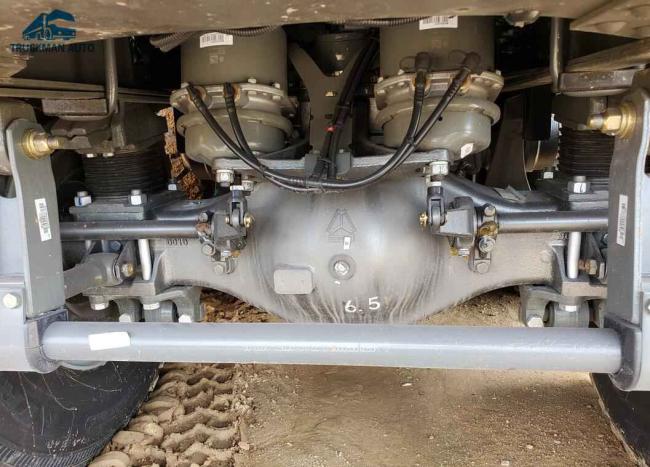

HC16 driving axle

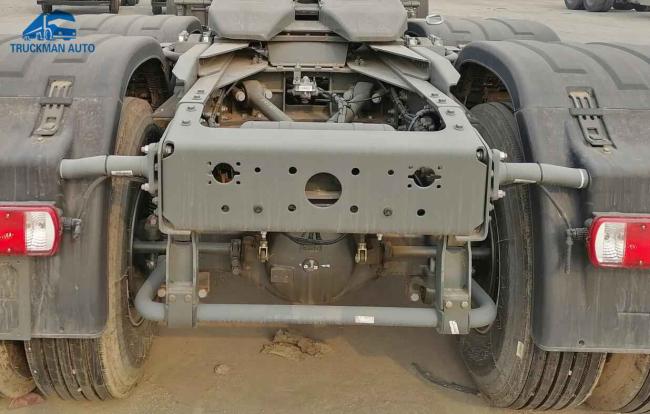

AC16 driving axle
