1x8 Bare Fiber PLC Splitter Steel Tube Type for FTTH with G657A1 Fiber
1*8 Bare Fiber Optic Mini PLC splitter steel tube type PLC Fiber for ftth
Product Description
The PLC splitter (also called Planar Waveguide Circuit splitter) is a passive optical device with many input and output terminals, especially applicable to PON (EPON, GPON, BPON, FTTX, etc.) to connect the MDF (main distribution frame) and the terminal equipment and to branch the optical signal. Fiber PLC splitter provides a low cost light distribution solution with high stability and reliability. PLC splitters can offer a splitting ratio up to 1x64, which is generally higher than the splits of FBT splitter.
Application
PON-FTTX network
Fiber to the home
Passive optical network
Cable TV network
Features
Good channel uniformity
High stability and reliability
Compact design
Certified by Telcordia GR.1209 and GR.1221
In line with ROHS standards
Low loss and stable polarization
| Item | Parameter |
| Insertion loss (dB) | 10.2 |
| Polarization dependent loss (dB) | ≤0.25 |
| Uniformity (dB) | ≤0.8 |
| Return loss (dB) | ≥55 |
| Directionality (dB) | ≥55 |
| Fiber length (m) | 1.0or customized |
| Temperature stability (dB) | -40℃--85℃(≤0.5) |
| Working temperature °C | -40℃--85℃ |
| Storage temperature °C | -40℃--85℃ |
| Fiber type | G657A1 or customized |
| Working wavelength (nm) | 1260-1650 |

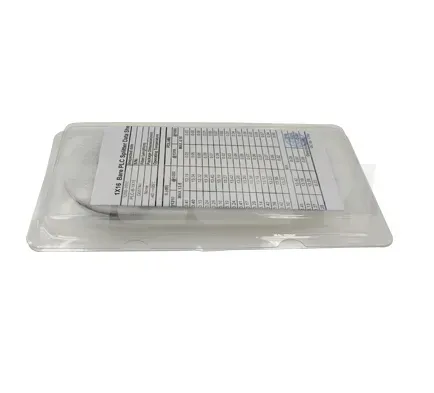

Package
FAQ
Q1:Can I have a sample order? What is your MOQ for 1x8 Bare Plc Splitter?
A4: 3 years' warranty.
A5: Yes, we could provide OEM service which according to your requirements, design products label, logo, PN, SN, package.
