4 Ports 1550nm Fiber Optical Circulator SC APC For Fiber Bragg Grating

Price Negotiable
Price: Negotiable
MOQ: 1pc
Delivery Time: 2-7 work days
Brand: GEZHI or OEM
Product Description

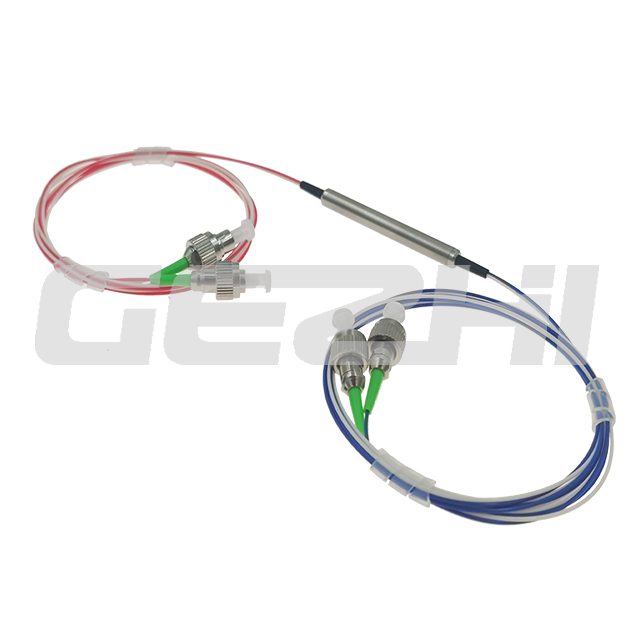

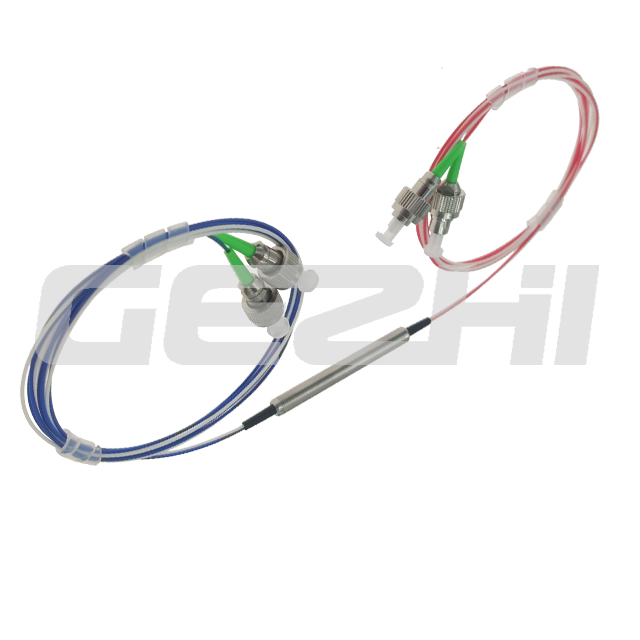

Fiber Optical 4 Ports 1550nm Circulator For Fiber Bragg Grating Sc Apc

Product Description





Features

High isolation &High Reture Loss
Low insertion loss & PDL
optical Path Epoxy Free
High Stability and reliabilty
Epoxy-free on Optical Path

Application

Datacenter and Enterprise networking

40GBASE-LR4 40G Ethernet links

Infiniband QDR, DDR and SDR



Specification

Grade GRADE P GRADE A
Construction Port1 to Port 2, Port2 to Port3
Operation Wavelength(nm) 1310/1550/ 1585
Standard Input Loss(23°C) 0.4 0.5
Max. Insertion Loss(23°C) 0.5 0.6
Max. Isolation(dB) 50
Min. Isolation(dB) 40
Directivity(dB) 50
PDL(dB) 0.15
PMD(ps) 0.1
RL(dB) 50
Bandwidth(nm) +/-30
Max. Operating Power(mw) 500/300
Operating Temperature(°C) 0~70
Storage Temperature(°C) -40~85
Dimension (mm) Φ5.5xL50 or 90*20*9.5


Test Environment

Packing & Shipping



More Questions:

1. Can I have a sample order?What is your MOQ?

Yes, we welcome sample order to test and check quality. We do not have MOQ,1 sample is available.



2. What is the lead time?
For usual products,We keep stock,could ship about 3 days after received payment.For big quantity and special products,Please check lead time with our sales representative.


3. What is your payment terms?
Usually,we need prepayment by T/T,West Union or Paypal.

Could also support L/C,Credit terms.



4. Could I return the products if there is a quality problem?
Yes,if there is a quality problem happen,we could accept free exchange.



5. How do you ship the goods and how long does it take arrive?
We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive.



6. What is your warranty time
We promise 3 years warranty for all products shipped from us.



7. Could i use our own logo and label?

Yes,we could provide a OEM service and make the products with your own label.
