50GHz 1x96 Channel AAWG DWDM Module LC/UPC Connector With Metal Box

Price Negotiable

Price: Negotiable

MOQ: 1pc

Delivery Time: 5-8 work days

Brand: GEZHI or OEM

Product Description

Description of 1x96CH AAWG Mux Demux

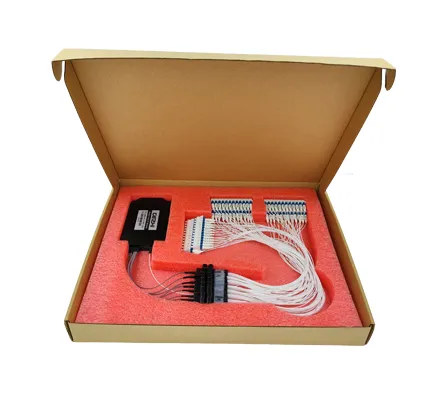

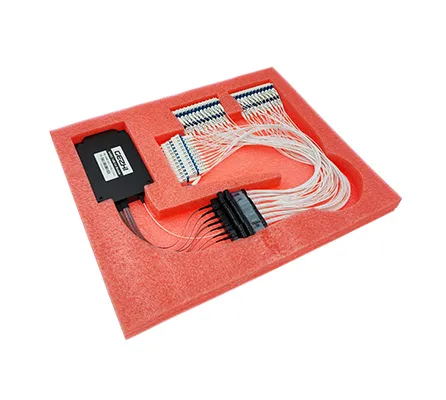

50GHz 1x96 Channel AAWG DWDM Module LC/UPC connector with Metal box

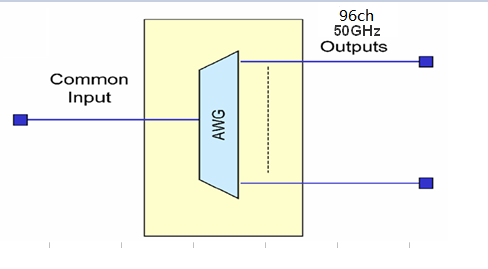

1x96 Channel AAWG Mux Demux

Athermal AWG(AAWG) have equivalent performance to standard Thermal AWG(TAWG) but require no electrical power for stabilization. They can be used as direct replacements for Thin Film Filters(Filter type DWDM module) for cases where no power is available, also suitable for outdoor applications over -30 to +70 degree in access networks. GEZHI Athermal AWG(AAWG) provide excellent optical performance, high reliability, ease of fiber handling and power saving solution in a compact package.

Features & Applications of 1x96CH AAWG Mux Demux

Features:

Low PDL

Low chromatic dispersion

Low insertion loss

Mux/Demux Functionality

Athermal Design, Electrical Power is Not Required

Compact Package

Multi-channel Number

Applications:

Optical add/drop multiplexing

Wavelength routing

DWDM transmission

Specifications of 1x96CH AAWG Mux Demux

Parameter	Unit	Flat-top
Number of channels		16/32/40/48		96
Channel spacing	Ghz	50		50
Channel frequency	Thz	Blue band=1528.773~1547.316		C band=1526.827~1564.679
Channel frequency	Thz	Red band=1545.720~1564.679
Wavelength accuracy	nm	±0.05	±0.05	±0.05	±0.05
1db bandwidth	nm	>0.18	>0.12	>0.18	>0.12
3db bandwidth	nm	>0.28	>0.20	>0.28	>0.20
Insertion loss (passband)	dB	<4.5	<3.7	<5.5	<4.5
Adjacent channel crosstalk	dB	>27		>27
Non-adjacent channel crosstalk	dB	>30		>30
Total crosstalk	dB	>24		>24
Insertion loss uniformity	dB	<1.2		<1.5
Polarization loss	dB	<0.5	<0.5	<0.5	<0.5
Return loss	dB	>40
Dispersion	ps/nm	±10
Operating temperature	ºC	-20~70
Size (length * width * height)	mm	1207012.3		1309011.3
