3 Ports Filter WDM FWDM T1625nm R1310/1490/1550nm For OTDR

Product Overview of 3 Ports FWDM

Excellent Thermal Stability 3 ports T1625nm R1310/1490/1550nm FWDM for OTDR

3 ports T1625nm R1310/1490/1550nm FWDM

Gezhi Optical Fiber Filter WDM FTTX 1625nm is made by special optical components and advanced technology, it can deeply let 1600-1670nm wavelength pass but efficiently filter out 1250-1590nm wavelength. This product is mainly used in optical fiber on-line testing. It is ideal component of 1625/1650nm optical fiber filtering.

It enable testing fibers that are bearing traffic with an OTDR by inserting an out-of-band wavelength (1625 or 1650 nm). The OTDR signal is added to the data signal by using a wavelength division multiplexer (WDM). At the other fiber extremity, a filter blocks the OTDR signal. When OTDR measurement range can cover more than one fiber span, a bypass can extend the OTDR signal to the adjacent span.

Features of 3 Ports FWDM

Telcordia GR1221,RoHS Compliant

Optical path epoxy free and excellent thermal stability

Low insertion loss and high isolation

Wide and flat passband

Specifications of 3 Ports FWDM

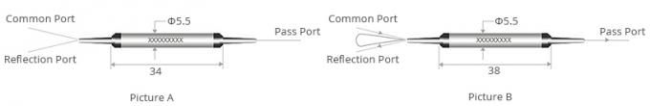

Mechanical Drawing

Odering Information of 3 Ports FWDM

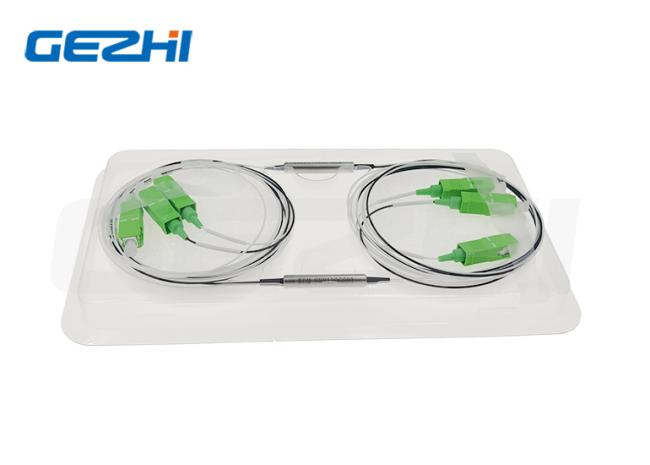

Package

FAQ

Q1:Can I have a sample order of Mini Size 3 Ports FWDM? What is your MOQ?
A1:Sample order is welcome to test and check quality. We don't MOQ, 1pcs sample is available. Also Mixed samples are acceptable.
Q2: What's the Lead time?
A2: The normal lead time is about 1week, For big quantity and special products. Please check lead time with our sales.
representative. But we keep stock for some products, could ship 1-3 days after receiving payment.
Q3: What are the payment terms of 3 Ports FWDM?
A3: Payment term: T/T, Paypal, Western union,cash payment, ALI etc.
Q4: What is your warranty time3 Ports FWDM?
A4: 3 years' warranty.
Q5: Could I use our own logo, label and package?
A5: Yes, we could provide OEM service which according to your requirements, design products label, logo, PN, SN, package.
