SC/UPC 0.9mm Fiber Connector for Test Equipment

Price Negotiable
Price: US$59-US$118
MOQ: 1pc
Delivery Time: 5-8 work days
Brand: GEZHI or OEM
Product Description



Product Overview of SC Fiber Connector

SC/UPC 0.9mm Fiber Connector for Test Equipment



Fiber Connector



GEZHI Photonics produce various of kinds of Single Mode and Multi-mode fiber optic connectors for ST, SC, FC, LC, E2000, MPO, MU and MTRJ applications. Both pre-assembled connector and connector kits are available. Each fiber optic connector is functionally tested before shipping.







Applications of SC Fiber Connector

*Data Processing Networks
*Premise Installations
*Wide Area Networks (WANs)
*Test Equipment
*Telecommunication Networks
*Local Area Networks (LANs)
*CATV System







Specifications of SC Fiber Connector




Parameter
SC 0.9mm Connector

SM

MM

PC

UPC

APC

PC

Insertion loss
≤0.25dB
≤0.25dB
≤0.25dB

≤0.25dB

Return loss
≥50dB
≥55dB
≥60dB
/
Operating wavelength
1310nm, 1550nm
850nm, 1300nm
Ferrule Concentricity
≤1um
≤4um

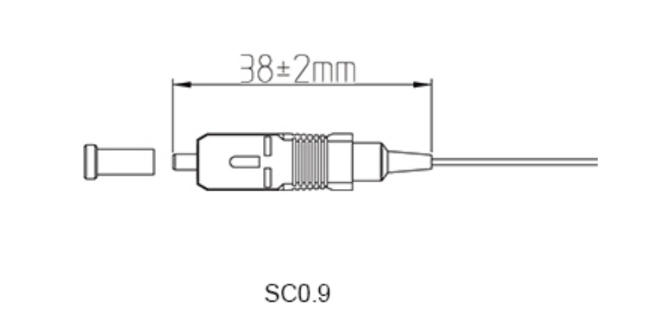

Dimension of SC Fiber Connector





Test Environment





FAQ
Q1:Can I have a sample order? What is your MOQ of SC Fiber Connector?
A1:Sample order is welcome to test and check quality. We don't MOQ, 1pcs sample is available. Also Mixed samples are acceptable.
Q2: What's the Lead time?
A2: The normal lead time is about 1week, For big quantity and special products. Please check lead time with our sales representative. But we keep stock for some products, could ship 1-3 days after receiving payment.
Q3: What are the payment terms of SC Fiber Connector?
A3: Payment term: T/T, Paypal, Western union,cash payment, ALI etc.
Q4: What is your warranty time of SC Fiber Connector?
A4: 3 years' warranty.
Q5: Could I use our own logo, label and package?
A5: Yes, we could provide OEM service which according to your requirements, design products label, logo, PN, SN, package.
