1x4s 105/125um Fiber Optical Switches For Fiber Sensor

Price Negotiable

Price: Negotiable

MOQ: Negotiable

Delivery Time: Negotiable

Brand: GEZHI

Product Description

Product Description:

1x4S 105/125um fiber Optical Switch for Fiber Sensor

1x4S Optical Switch

This 1x4S Optical Switches from GEZHI Photonics is used 105/125um large core fiber. Which support 780nm, 850nm, 980nm, 1060nm, 1310nm, 1550nm or customized wavelength. The 105/125um fiber 1x4 Optical Switches is with Low insertion loss, High stability and Reliability and High Cross talk. Which widely used in Medical, Fiber sensor, Research, Laser and Aerospace etc.

Features

◆Low insertion Loss
◆High Channel Isolation
◆High Stability, High Reliability
◆Latching or Non-latching

Technical Parameters

Parameters		GZ-1x4S
Operating Wavelength	nm	780, 980, 1060, 1310,1550 etc
Insertion Loss	dB	≤1.5
Wavelength Dependent Loss	dB	≤0.40
Polarization Dependent Loss	dB	≤0.05
Temperature Dependent Loss	dB	≤0.20
Return Loss	dB	SM≥50 MM≥30
Cross Talk	dB	SM≥55 MM≥35
Switch Time	ms	≤8
Repeatability	dB	≤±0.02
Durability	times	≥107
Operating Voltage	V	3 or 5
Switch Type		Non-Latching/Latching
Operating Temperature	℃	－20~＋70
Storage Temperature	℃	－40~＋85
Optical Power	mw	500, 1000, 2000, 5000, 10000 etc
Dimension	mm	52.7.0L×37.2W×10.0H

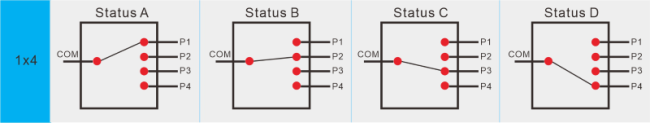

Optical Route

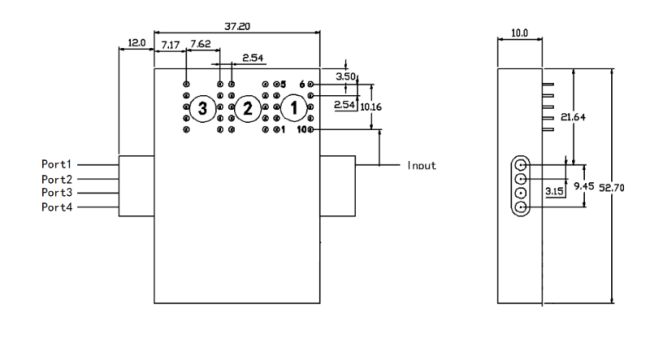

Dimension

Odering Information

Mode

Wavelength

Voltage Type

Control Model

Working Power

Fiber Type

Fiber Diameter

Fiber Length

Connector

1x4S

S=SM

M=MM

780=780nm

85=850nm

13=1310nm

15=1550nm

13/15=1310/1550nm

980=980nm

1060=1060nm

S=Specify

3=3V

5=5V

L=Latching

N=Non- Latching

N=500mw

1=1W

2=2W

5=5W

10=10W

S=Specify

5=50/125

6=62.5/125

9=9/125

1=105/125

S=Specify

25=250um

90=900um

20=2.0mm

S=Specify

05=0.5m

10=1.0m

S=Specify

00=None

FP=FC/PC

FA=FC/APC

SP=SC/PC

SA=SC/APC

LP=LC/PC

LA=LC/APC

S=Specify

FAQ

Q1:Can I have a sample order? What is your MOQ of 1x4S Optical Switch?

A1:Sample order is welcome to test and check quality. We don't MOQ, 1pcs sample is available. Also Mixed samples are acceptable.

Q2: What's the Lead time?

A2: The normal lead time is about 1week, For big quantity and special products. Please check lead time with our sales representative. But we keep stock for some products, could ship 1-3 days after receiving payment.

Q3: What are the payment terms of 1x4S Optical Switch?

A3: Payment term: T/T, Paypal, Western union,cash payment, ALI etc.

Q4: What is your warranty time of 1x4S Optical Switch?

A4: 3 years' warranty.

Q5: Could I use our own logo, label and package?

A5: Yes, we could provide OEM service which according to your requirements, design products label, logo, PN, SN, package.

Q5:What is the maximum length of the Patch Cable Series?

A5: The maximum length of the Patch Cable Series is 100ft.
