Length Custom Fiber Optic Patch Cables Sc Sm / Mm / Om3 Pvc / Upc / Apc
Customized Length Optical Fiber Patch Cord SC SC SM/MM/OM3 PVC/OFNR/LSZH UPC/APC

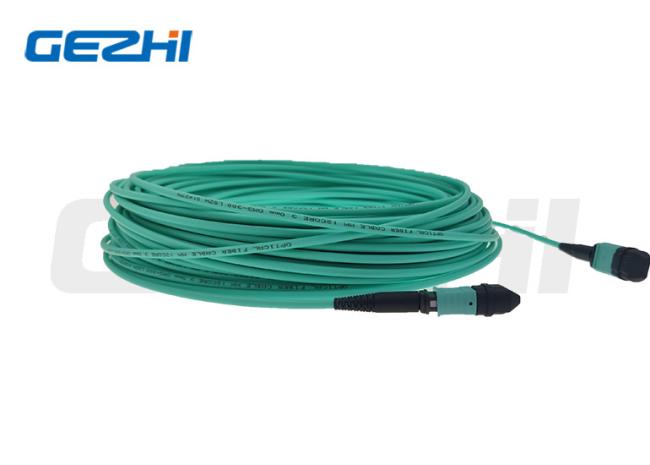

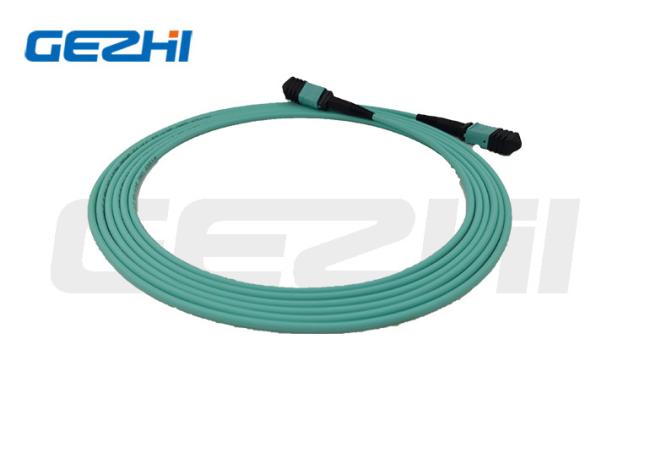

Product View
Fiber Optic Patch Cord have same or different connectors which are installed on the end of fiber optic cable. The Fiber Optic Patch Cord series comes with a comprehensive collection of lengths and connectors to fulfill your demand for the deployment
|
Features Low Insertion Loss High return Loss
|
Applications Telecom
Optical Fiber Test Equipment Optical Fiber Communication System FTTH,LAN,PON & Optical CATV. |
Ordering options
Connector type: FC, SC, LC, ST, MTRJ, MU, MPO, DIN, D4, SMA
Ferrule End-face: PC, UPC, APC
Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
Cable Quantity: Simplex, Duplex, 6cores ,12corns, 16cores, 24cores, 36cores, 48cores...
Cable Diameter: φ3.0mm,φ2.0mm, φ0.9mm
Cable Length: 1, 2, 3 meter or customized
Cable type: PVC, LSZH, OM3, OFNR, OFNP, Plenum ,Armored
Specification
| Item | SM | MM | ||
| Type | FC/APC | FC/UPC | FC/APC | FC/UPC |
| SC/APC | SC/UPC | SC/APC | SC/UPC | |
| ST/APC | ST/UPC | |||
| Return Loss | >=45dB | >=50dB | >=60dB | >=35dB |
| Insertion Loss | <=0.2dB | |||
| Operating Temperature | -40°C ~ +80°C | |||
| Repeatability | <=0.1dB | |||
| Interchangeability | <=0.2dB | |||
| Insertion and Pull Times | 1000 | |||
| Tensile Strength | >100N | |||
Application Diagram
Quality Control
Our Certificate
Packing & Shipping
AFQ
Q1:Can I have a sample order? What is your MOQ?
A2: The normal lead time is about 1week, For big quantity and special products. Please check lead time with our sales representative. But we keep stock for some products, could ship 1-3 days after receiving payment.
A4: Yes, we could provide OEM service which according to your requirements, design products label, logo, PN, SN, package.
A5: 3 years' warranty.
