Product Description

Fiber network equipment FTTH ABS Box 1x3 fiber optic coupler 1x2 1x4 PLC splitter steel tube fiber circulator

Product Details

The Mini Fiber Optic Circulator is a compact, high performance lightwave component that routes incoming signals from Port 1 to Port 2, and incoming Port 2 signals to Port 3. The component provides high isolation, low insertion loss, low PDL, low PMD and excellent environmental stability. It is widely used in combination with fiber gratings and other reflective components in DWDM systems, high speed systems and bi-direction communication systems.




Features

*Good uniformity and low insertion loss
*Low polarization dependent loss
*Excellent environmental stability
*Excellent mechanical construction
*Compact design, suitable for installation in optical equipment
*Wide operating temperature:-40~85

*High reliability and stability



Applications

Optical Amplifier
Metro Area Network
Wavelength Add/Drop
Dispersion Compensation
Bi-Direcation Communication



Technical Specification

Specificati
Parameter
Unit
Type A
Center Wavelength (λc)
nm
1310 or 1550
Operating Wavelength Range
nm
λc ± 20
Typ. Insertion Loss
dB
0.7
Max. Insertion Loss
dB
0.8
Min. Isolation, 23 ℃
dB
45
Min. Crosstalk
dB
50
Min. Return loss
dB
55
Max. Polarization Dependent Loss, 23 ℃
dB
0.1
Max. Polarization Mode Dispersion
ps
0.1
Max. Optical Power (Continuous Wave)
mW
300
Max. Tensile Load
N
5
Fiber Type

SMF-28 fiber
Operating Temperature
-5 to +70
Storage Temperature
-40 to +85
Package Dimensions
mm
5.5 × 50

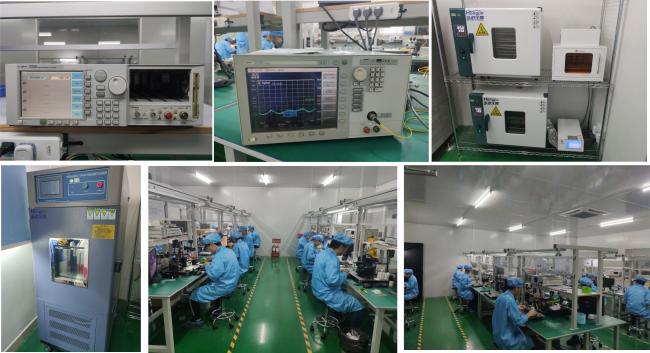

Manufacturing & Equipment
