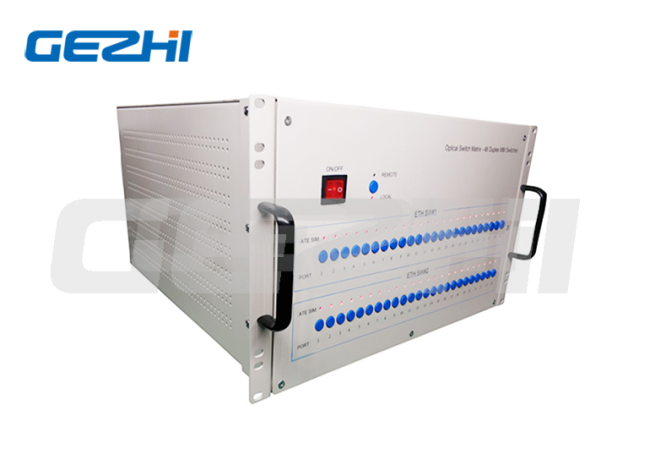

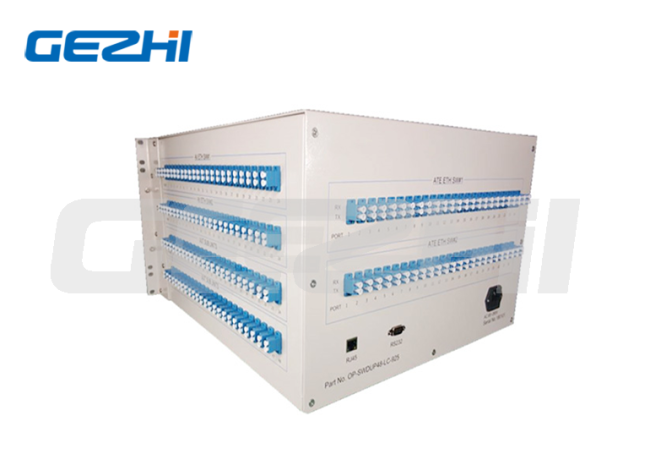

48*2x4 Optical Switch Matrix description

                                            48*2x4 Optical Switch Matrix Fiber Optical Switches

In the rapidly evolving realm of optical networking, the demand for flexible and reliable devices is constantly escalating. Taking center stage in this sector is the 48*2x4 Optical Switch Matrix presented by GEZHI Photonics, a leading factory known for its expertise in optical switch matrix equipment.

48*2x4 Optical Switch Matrix  Features

• LED display panel. Visual display, Convenient operation

• SerialNet, High Reliability, High Stability

• RS232 Control and RJ45 Ethernet Remote Management

• Channel and time interval of automatic scanning can be set up

• Transparent transmission signal. High stability and re

• liability

•

Applications

• Automatic Measurement

• FITL

• Cable Monitoring and Maintaining system

• Optical Network Remote Monitoring

•

•

• Optical Matrix Switch Technical Index

•

• Parameter	Unit	48*2x4
  Wavelength Range	nm	1260~1650 or customized
  Testing Wavelength	nm	1310/1550 or customized
  Insertion Loss (Max)	dB	≤1.5
  Return Loss	dB	SM ≥ 50
  Crosstalk	dB	≤-55
  PDL	dB	≤0.05
  WDL	dB	≤0.25
  TDL	dB	≤0.20
  Repeatability	dB	≤0.02
  Switching Time	ms	≤10 (Adjacent Channel)
  Optical Power	mW	≤500
  Fiber Type	um	9/125
  Connector	/	FC, SC, LC, ST, SMA or customized
  Monitor Port	/	RJ45 & RS232 or customized
  Working Power Supply (Plug Tyep)	V	AC:220V (50/60Hz) or DC:36V~72V
  Operating Temperature	℃	-10~+60
  Storage Temperature	℃	-40~+85
  Rack mount Dimensions	mm	6U: 483x500x267mm
