Transmission 1550nm Reflction 1x2 Ports FWDM Module
1x2 Ports FWDM module Transmission 1550nm Reflction 1310&1490nm
GEZHI's 1x2 Ports FTTX Filter WDM module extensively used in Raman amplifiers, EDFA, fiber optics instrumentation and WDM networks. It is based on Thin Film Filter (TFF) technology. The device combines or separates signal (1310/1490/1550nm) at different wavelengths in a wide wavelength range. The 1x2 Ports FWDM Module can expand the capacity of a single fiber to achieve bidirectional communication, so that widely used in optical network expansion and upgrade, or introduce new comprehensive business etc.
GEZHI provides 1x2 Ports FWDM Module that are customized to the particular wavelength bands for your special applications. As you might know, GEPON system itself works on 1310/1490, so CATV signal here is delivered over same fiber using 1550nm, and GEZHI's 1x2 Ports FWDM Module is a place where all this get's "mixed".
Features
Low insertion loss
Low PDL
Optical path epoxy free
High channel isolation
Wide operating wavelength range
Excellent environmental stability
Telcordia compliant

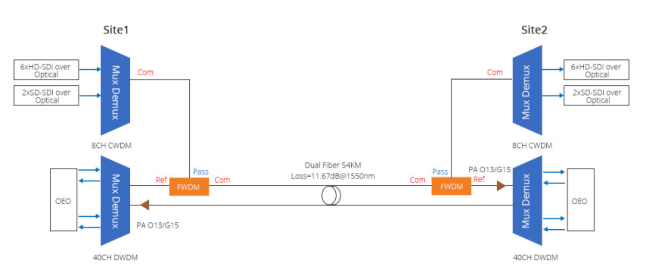

Applications
Optical Fiber communication System
CATV
WDM system
EDFA, Amplifier etc.
Fiber Lasers
Specification
| Parameters | Unit | FWDM Device | ||
| Operating Wavelength 1310±50,1490±10, 1550±10 |
nm |
T1550 R1310/1490 |
||
| Insertion Loss | dB | Transmission: ≤ 0.6 | ||
| Reflection: ≤ 0.4 | ||||
| Transmission Channel Isolation | dB | ≥ 30 | ||
| Reflection Channel Isolation | dB | ≥ 17 | ||
| PDL | dB | ≤ 0.1 | ||
| Wavelength thermal stability | nm/℃ | ≤ 0.003 | ||
| Insertion loss thermal stability | dB/℃ | ≤ 0.005 | ||
| Return loss | dB | ≥ 45 | ||
| Optical Power | mW | ≤ 500 | ||
| Operating Temperature | ℃ | -10 ~ +70 | ||
| Storage Temperature | ℃ | -40 ~ +85 | ||
| Relative Humidity | % | 5 ~ 95 | ||
| Dimension | mm | 100x80x10mm | ||
| Note: 1. Customization is available. 2. Specified without connector, and add an additional 0.2dB loss per connector. |
||||
Ordering Information:
| A | B | C | D | E |
| Wavelength | Tube Type | Fiber Length (Include connector) |
Connector | Dimension |
|
T15R13/14=T1550 R1310/1490 T14R13/15=T1490 R1310/1550 T13R14/15=T1310 R1490/1550 T15/16R13/14=T1550/1610R1310/1490 X=Others |
25=250um 90=900um 20:2000um 30=3000um X=Others |
05=0.5m±0.05m 10=1.0m±0.05m 15=1.5m±0.05m X= Others |
00=None FP=FC/PC FA=FC/APC SP= SC/PC SA=SC/APC STP=ST/PC STA=ST/APC LP=LC/PC LA=LC/APC X=Others |
5534=Φ5.5×34mm 4225=Φ4.2×25mm 9021=90×20×10mm X=Customized |
1x2 Ports FWDM Module
