Cassette 4 Slot 19 Inch 1U Rack Mount 18 CH Passive CWDM

Price Negotiable

Price: Negotiable

MOQ: 1pc

Delivery Time: 5-8 work days

Brand: GEZHI or OEM

Product Description

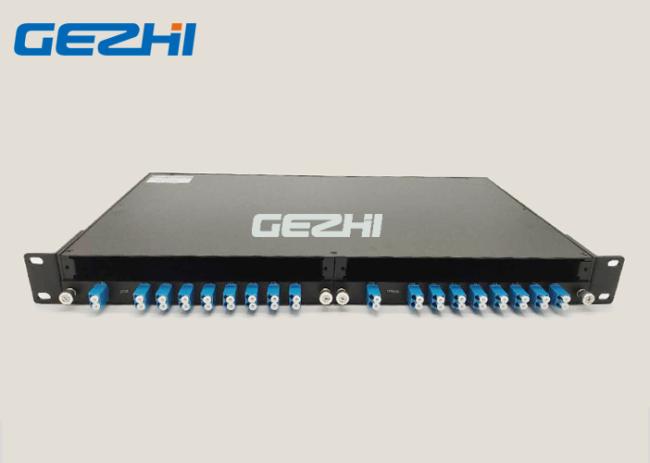

18CH CWDM Passive Multiplexer cassette insert on 4-slot 19" 1U Rack-mount

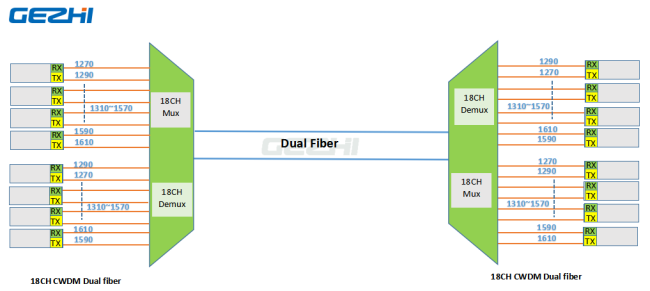

GEZHI 18CH CWDM Passive Multiplexer is built-in a 18CH Mux and 18CH Demux in one LGX cassette. The LGX cassette is insert on the 4-slot type 19" 1U frame. The wavelenght of GEZHI 18CH CWDM Passive Multiplexer cassette is 1270nm to 1610nm. The 18CH CWDM Passive Multiplexer cassette offers an high channel isolation WDM solution for data centers and Metro access applications. Its working on a dual optical fiber with only 3.5dB link insertion loss.

Features

3.5dB link insertion loss

18 channels per fiber

Epoxy free optical path

High Quality & Low Cost

Fully compatible with all ITU-T CWDM optics

High channel isolation

Built-in Mux+Demux in one unit, working on dual network fibers

Applications

Line monitoring

Dark fiber networks

Broadcast contribution networks

Fiber optical amplifier

Access Network

WDM network

Optical video networks
Event production

Telecommunication

Specification

Parameter		Unit	18CH CWDM Passive Multiplexer
			Mux	Demux
Channel Wavelength		nm	1270~1610nm
Center wavelength Accuracy		nm	±0.5
Channel Spacing		nm	20
Channel Passband (@-0.5dB bandwidth		nm	>14
Max Insertion Loss		dB	<5.5 or <3.5 with Skip	<5.5 or <3.5 with Skip
Channel Ripple		dB	0.3
Isolation	Adjacent	dB	>30
	Non-adjacent	dB	>40
Inertion Loss Temperature Sensitivity		dB/℃	<0.005
Wavelength Temperature Shifting		nm/ ℃	<0.002
Polarization Dependent Loss		dB	<0.1
Polarization Mode Dispersion		dB	<0.1
Directivity		dB	>50
Return Loss		dB	>45
Maximum Power Handling		mW	300
Opterating Temperature		℃	-5~+75
Storage Temperature		℃	-40~85
Package dimension		mm	LGX cassette
