Triple Channel 500mW 1650nm 1x4 Fiber Optical Switch
Triple channel 1x4 Fiber Optical Switch
GEZHI Photonics Co.,Ltd 's three channel 1x4 Fiber optical switches are available for single-mode fiber test applications. The excellent repeatability, compact format and flexible control interfacing support high-performance setups. These instruments are used for routing of optical signals for testing devices like tranceivers, amplifiers, and passive components. This three channel 1x4 Optical switches optimize the investment in test equipment by improving repeatability and throughput and supporting parallel measurements of multiport and multiple devices.
|
Features Low insertion loss, Fast switching RS232 Control and RJ45 Ethernet Remote Management |
Applications OXC, OLP, ROADM
|
Specification
| Parameters | Unit | Indicators |
| Unit Type | FSW-3C-1x4-SM | |
| Wavelength Range | nm | 1260~1650nm |
| Test Wavelength | nm | 1310/1550 nm |
| Insertion Loss | dB | Typ. ≤0.8dB,Max.≤1.0 dB |
| Repeatability | dB | ≤ 0.02 |
| Return Loss | dB | ≥ 50 |
| Crosstalk | dB | ≥ 55 |
| WDL | dB | ≤ 0.25 |
| PDL | dB | ≤ 0.05 |
| Optical Power | mW | ≤ 500 |
| Switching Time | ms | ≤12 ms(adjacent channel) |
| Fiber Type | um | 9/125 |
| Connector | FC/PC | |
| Monitoring Port | RJ45 & RS-232 | |
|
Working Power Supply (Plug-type) |
V |
AC:100～ 240 (50/60Hz) |
| Power Consumption | W | ＜ 10 |
| Operating Temperature | ℃ | -10 ～ 60 |
| Size | mm | 1U:483 x 230 x 45 |

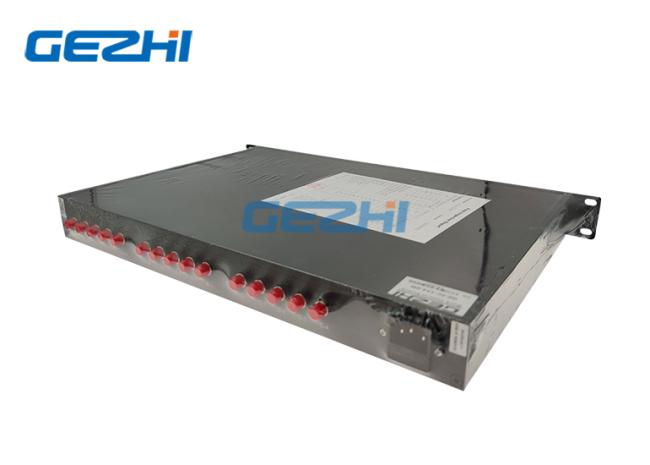

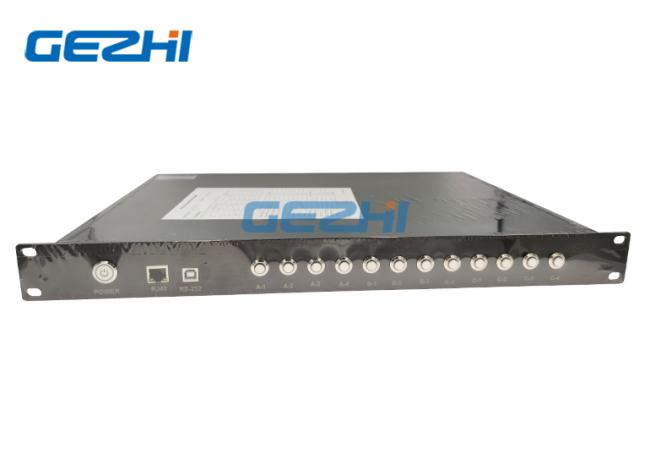

More Picture
