Bidirectional 1310nm 1550nm Fiber Optical Switches Full 2×2 SM FC UPC
1310/1550nm Full 2×2 SM Fiber Optical Switch Bidirectional
The 2x2F Optical Switches of GEZHI Photonics Co.,Ltd connects optical channels by redirecting an incoming optical signal into a selected output fiber. Its used in Channel Blocking, Configuration add/drop solution with low optical distortions and high reliability. These 2x2 bidirectional optical switches, which have two inputs and two outputs, with Through and Cross optical state.
|
Features
|
Applications
|
Specification
| Parameters | Specifications | Unit |
| Operating Wavelength | 1260~1650(SM) | nm |
| Insertion Loss | ≤1.0 | dB |
| Wavelength Dependent Loss | ≤0.25 | dB |
| Polarization Dependent Loss | ≤0.05 | dB |
| Temperature Dependent Loss | ≤0.20 | dB |
| Return Loss | SM≥50 | dB |
| Cross Talk | SM≥55 | dB |
| Switch Time | ≤8 | ms |
| Repeatability | ≤±0.02 | dB |
| Durability | ≥107 | times |
| Operating Voltage | 3 or 5 | V |
| Switch Type | Non-Latching/Latching | |
| Operating Temperature | －20~＋70 | ℃ |
| Storage Temperature | －40~＋85 | ℃ |
| Optical Power | ≤500 | mW |
| Dimension | 27.0L×12.5W×8.4H | mm |
Optical Route
Pins
| Type | Optical Route | Electric Drive | State Sensor | ||||||
| Full 2×2 | Pin 1 | Pin 5 | Pin 6 | Pin 10 | Pin 2-3 | Pin 3-4 | Pin 7-8 | Pin 8-9 | |
| Latching | P1-P4,P2-P3 | -- | -- | GND | V＋ | Close | Open | Open | Close |
| P1-P3,P2-P4 | V＋ | GND | -- | -- | Open | Close | Close | Open | |
| Non-latching | P1-P4,P2-P3 | -- | -- | -- | -- | Close | Open | Open | Close |
| P1-P3,P2-P4 | V＋ | -- | -- | GND | Open | Close | Close |
Open
|
|
Ordering Information
GZ-FSW-2×2F
| Mode | Wavelength | Voltage Type | Control Model | Fiber Type | Fiber Diameter | Fiber Length | Connector |
| S=SM M=MM |
85=850nm 13=1310nm 15=1550nm 13/15=1310/1550nm X=Others |
3=3V 5=5V |
L=Latching N=Non- Latching |
5=50/125 6=62.5/125 9=9/125 X=Others |
25=250um 90=900um 20=2.0mm 30=3.0mm X=Others |
1=1m 2=1.5m X=Others |
0=None X=Others |
Mechanical Drawing

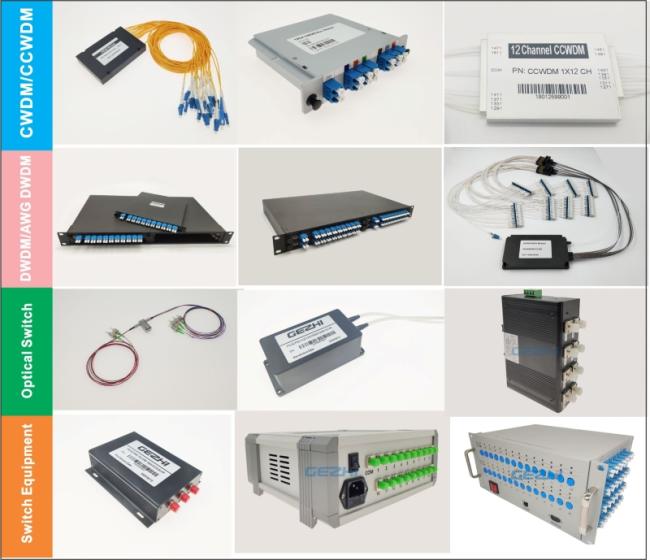

GEZHI Photonics Co.,Ltd is a factory which mainly produce DWDM, AWG DWDM Module, CWDM, Filter WDM, Mechanical Optical Switch like 1x1, 1x2, 2x2B, 2x2F, 2x4, 4x4, 1x4, 1x8 and 1xN Multi Channel Optical Switch, Optical Switch Equipment, MEMS Optical Switch, MEM VOA, Optical Patch Cord etc.
