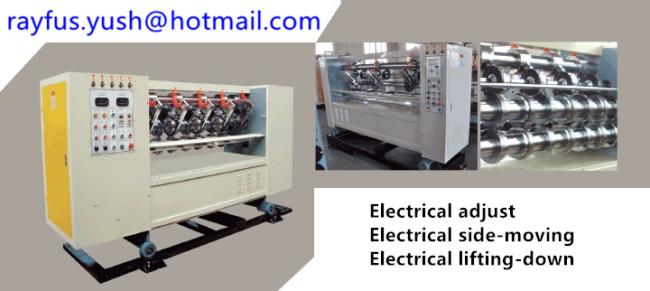

Side Moving Slitter Scorer Machine Electrical Adjust Lifting For Corrugated Line
Technical Parameters:
1) This machine as an important part of the corrugated cardboard production line is used to do the slitting and creasing.
2) Machine electrically lift-down, to meet different production lines cardboard height.
3) Machine with the electric axial displacement device, efficiently coordinate with cardboard misregistration.
4) Manually adjust cardboard specifications, simple and practical.
5) Transmission part adopts synchronous belt, high accuracy.
6) Slitting unit adopt high-speed thin blade, the cardboard cutting edge flat, smooth, without crowded bifida and collapsed; pneumatic grinding; grinding automatically or manually while production process, grinding-time and stop-time can be setup, to ensure that the blade edge sharp.
7) Frequency control speed, speed encoder get production speed through velocimetry wheel directly, to ensure synchronous running with production line.
Technical Parameters:
| Max Effective Width | 1100~2500mm |
| Slitting Knife | 4~6pcs |
| Min Slitting Distance | 160mm |
| Scoring Wheel | 6~10pairs |
| Min Scoring Distance | 60mm |
| Design Speed | 100~150m/min |
| Working Speed | 80~120m/min |
