Rotary Sheeter Stacker Paper Roll To Sheet Cutting Machine Dual Roll High Efficiency

Price Negotiable

Price: USD 60,000~80,000 per set

MOQ: 1 set

Delivery Time: 30~60 working days

Brand: YUSH

Product Description

Automatic High-speed Rotary Paper Sheeter Stacker, dual-roll, slitting cutting counting stacking

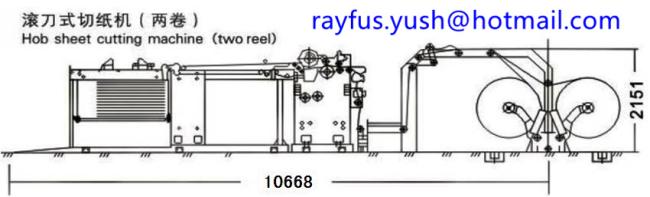

Automatic High-speed Rotary Paper Sheeter Stacker

(Dual-roll)

Functional Specifications:

QZJ-G Automatic Paper Sheeter could cut 2-roll-paper at same time, adopts computer control AC servo-motor driving rotary knife cutting paper reel to sheet.
Adopt accurate bearings and rotary-knife (upper knife rotary, lower knife fixed), high-speed cutting efficient and stable, high precision, long use life.
Touch screen PLC control interface, good performance and convenient operation.
Advanced inflection frame design, to ensure paper smooth feeding.
Equipped with tension, trimming, slitting, cutting, stacking, counting, inserting, etc.
This machine is efficient and benefits equipment for paper processing companies.

Technical Parameters:

Model	1100	1400	1700	1900
Max Paper Roll Width	1100mm	1400mm	1700mm	1900mm
Paper Thickness	60~600gsm (customer cut 40~750gsm before)
Max Paper Roll Diameter	1800mm (hydraulic shaftless Paper Roll Stand)
Cutting Length	450~1450mm		*4501650mm**
Cutting Precision	±0.3mm
Max Stacking Height	1400mm
Design Speed	300m/min (300cuts/min)
Weight	11000kg	13000kg	15000kg	17000kg
Dimension	*1400042002500mm*	*1400045002500mm*	*1400048002500mm*	*1400050002500mm*
