Chain Type Computerised Printing Machine 1 ~ 4 Color Printing Easy Operate
Price:
USD 15,000~100,000 per set
MOQ:
1 set
Delivery Time:
30~60 working days
Brand:
YUSH
Product Description

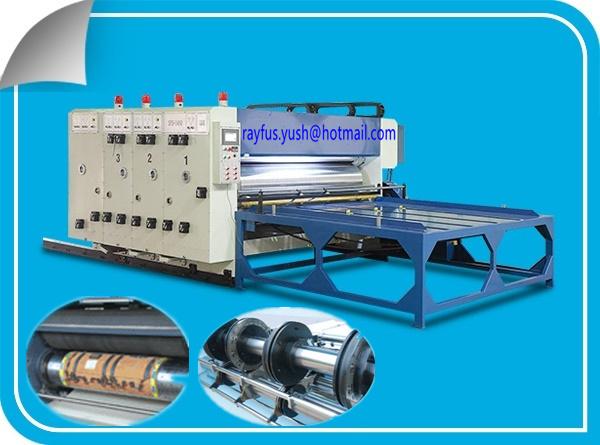

Chain type Flexo Printer Slotter Machine, Semi-auto chain feeding, 1~4 color printing, easy operate
Chain type Flexo Printer Slotter Machine
(chain feeding, 1~4 colors printing)
Function Specifications:
- This machine can do 1~4 colors printing, creasing, edge-cutting, slotting, corner-cutting, etc. at one process.
- Electric appliances of whole machine adopt excellent domestic products.
- Adopt cross slider transmission. Adopt spouting style cycle lubricate.
- All rollers chrome plated, high grade rubber and anilox roller, print elegant pattern.
- Adopt pneumatic uplift plate, pneumatic lock close, electric equal ink, pneumatic supply ink, electric separate and retune with pneumatic brakes, etc.
- Phase adjustment adopts planet gear structure, digital input.
- Slotting unit four knives combined adjustment for carton box height.
Technical Parameters:
| Model | 920 | 1224 | 1428 | 1632 |
| Max Sheet Size | 920*2000mm | 1200*2400mm | 1450*2800mm | 1600*3200mm |
| Min Sheet size | 300*500mm | 360*500mm | 450*600mm | 500*600mm |
| Max Printing Area | 920*1800mm | 1200*2200mm | 1450*2600mm | 1600*3000mm |
| Min Slotting Distance | 120*120*120*120mm | 120*120*120*120mm | 140*140*140*140mm | 140*140*140*140mm |
| Max Slot Depth | 230mm | 300mm | 360mm | 400mm |
| Design Speed | 60pcs/min | 60pcs/min | 60pcs/min | 60pcs/min |
YUSH CARTON MACHINE, your best supplier for Corrugated Cardboard & Carton Box Making Machines
Sincerely, welcome you to join our cooperator team, we shall repay you with top-notch products and perfect services.
