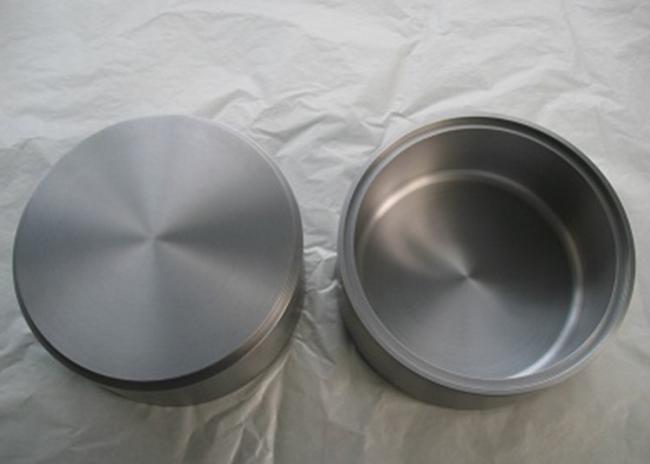

9.9g/cm3 Pure Molybdenum Crucible For Sapphire Crystal Growing Induction Furnaces
Pure Molybdenum Crucible for Sapphire Crystal Growing and Induction Furnaces
Product Description Molybdenum crucible:
Grade: Mo-1
Application:Used for sapphire crystal growing, rare earth metal metallurgy.
| Commodity | Material | Specification | Tolerance | Density |
| Molybdenum Crucible | Pure Mo | Φ(50-800)mm*(5-850)mm | ±0.5mm | ≥9.9g/cm³ |
|
Note : For special specification, we can produce according to customer's drawing. |
||||
Application of Molybdenum Crucible for Quartz Glass : For sapphire growth furnace, rare earth metals smelting , quartz glass smelting ,heating elements for induction furnaces ,high temperature container
Measurements (mm) of Molybdenum crucible:
| Delivery condition | Specification | Thickness | Roughness(μm) | |
| Diameter | Height | |||
| Sinter | 10~700 | 10~1000 | 5~30 | |
| Finished sinter | 10~650 | 10~850 | 7~25 | <2.5 |
Manufacturing process and equipment of Molybdenum crucible:
| Item | Process | Equipment | Quality Check point |
| 1 | Molybdenum powder | 1.Purity of tungsten powder | |
| 2 | Sieving | High frequency vibrating screen | 2.Fsss,HB |
| 3 | Mixed powder | V shape mixer | 3.Green strength |
| 4 | Isostatic pressing | Isostatic pressing machine | 1.Measurement of rough-processed billet |
| 5 | Rough billet lathing | CNC vertical turning machine | 2.Surface quality of rough-processed billet |
| 6 | IF sintering | IF induction sintering furnace | 1.Outside measurements of finished product |
| 7 | Competitive products lathing | High-accuracy vertical turning machine | 2.Surface quality and roughness of finished product,density |
Our Services:
As a professional tungsten and molybdenum manufacturer, our target is to serve worldwide clients with high-quality products, great reliability, devoted responsibility, professional services and honorable credibility to meet customers' requirements in all aspects. Offering skillful after-sale-service, specialists are available for all customers at 7*24 hours every week. As for payment, except for (L/C, TT etc), our company also accepts all kinds of emerging payment terms (like Western Union, MoneyGram, Paypal, Escrow etc)to provide convenience for you. Please select the most satisfactory payment term and we will fully meet your demands.
