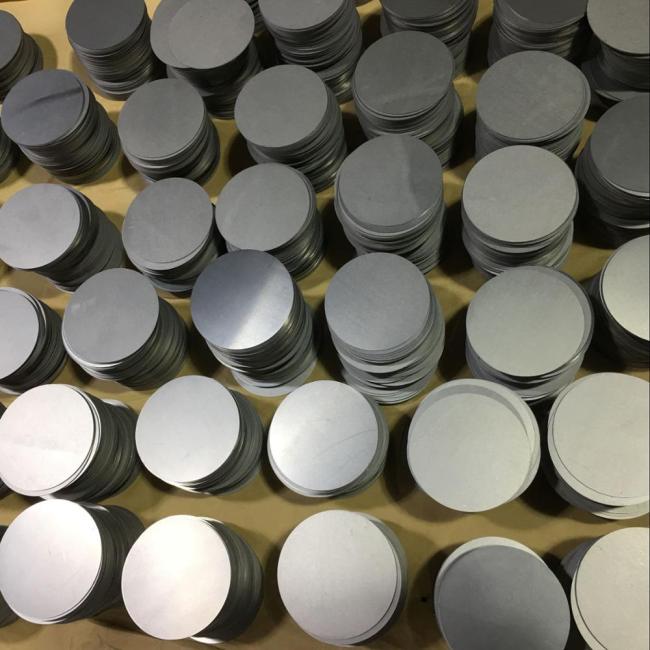

Molybdenum Alloy Round Disk TZM / Special Parts With 10.22 G/Cm3 Density
Molybdenum Alloy TZM Round Disk/Special Parts With 10.22 g/cm3 Density
Introduction of TZM alloy
TZM is a superalloy prepared by adding elements such as Ti, Zr and C into molybdenum matrix. This alloy contains 99.2% min. to 99.5% max. of Mo, 0.50% Ti and 0.08% Zr with a trace of C for carbide formations. TZM offers twice the strength of pure moly at temperatures over 1300℃. The recrystallization temperature of TZM is approximately 250℃ higher than moly and it offers better weldability.
It has good high-temperature properties, mechanical properties and other good characteristics, including high melting point, high strength, high elastic modulus, low coefficient of linear expansion, low vapor pressure, good electric and thermal conductivity, strong corrosion resistance and good high-temperature mechanical properties, so TZM has been widely used in many fields.
Application of TZM:
Because of its good high temperature performance, TZM is widely used in various high temperature fields. TZM is commonly used in the manufacture of electric vacuum devices and electric light source parts, and is suitable for the preparation of ion implantation parts.As a high-temperature heating element and high-temperature structural part, it is often used as the electrode of glass and refractory fiber industry. It works in 1300 ℃ glass melt, it has good performance and long service life.
Detail Specification of TZM Molybdenum alloy bar:
TZM Molybdenum alloy bar is manufactured as random length pieces or cut to customers' desired lengths in diameters ranging from 0.080 inches to 6.00 inches. Below are most of the standard sizes. If you do not see the size of molybdenum rod that you require, please feel free to contact us.
|
Diameter |
Length |
Diameter Tolerance |
Length Tolerance |
|---|---|---|---|
| 0.08" ~ 0.40" | <315" | ±0.005" | +0.08", -0 |
| 0.40" ~ 0.80" | <118" | ±0.010" | +0.08", -0 |
| 0.80" ~ 4.00" | <78" | ±0.015" | +0.08", -0 |
| >4.00" | <40" | ±0.025" | +0.08", -0 |
Physical performance comparison between TZM alloy and Pure Molybdenum
| Material | Density (g/cm3) | Melting Point(℃) | boiling point(℃) |
| TZM (Ti0.5/Zr0.1) | 10.22 | 2617 | 4612 |
| Mo | 10.29 | 2610 | 5560 |
| Mechanical property (TZM) | Elongation(%) | Elastic modulus(GPa) | Yield Strength (Mpa) | Tensile Strength(Mpa) | Fracture toughness(MP·m1/2) |
| Value | <20 | 320 | 560~1150 | 685 | 5.8~29.6 |
Guarantee purity of TZM molybdenum alloy bar
Are you looking for truly excellent quality TZM molybdenum alloy bar? Then you need us. We produce our TZM molybdenum alloy bar ourselves – from the metal powder right through to the finished product. As our input material, we use only the purest molybdenum. This ensures that you benefit from a very high level of material purity.
| Molybdenum products |
Molybdenum plate/sheet/foil (min 0.05mm); molybdenum rod/bar/wire; Molybdenum crucible,molybdenum boat/container,molybdenum tube. Molybdenum heating element for vacuum furnace and high temperature furnace. Molybdenum part made to required drawings. |
| Molybdenum alloy | TZM alloy,MoLa alloy. polished molybdenum alloy disk tzm disc |
| Tungsten products |
Tungsten plate/sheet/foil (min 0.05mm); polished molybdenum alloy disk tzm discTZM Tungsten rod/bar/wire; Tungsten crucible,tungsten boat/container,tungsten tube. Tungsten heating element for vacuum furnace and high temperature furnace. Tungsten part made to customer's drawings. |
| Tungsten alloy | WCu alloy,WLa,WNiFe and WNiCu heavy alloy. |
