Durable Chain Link Fence Fittings Galvanized Steel Tension Band 1-5/8"

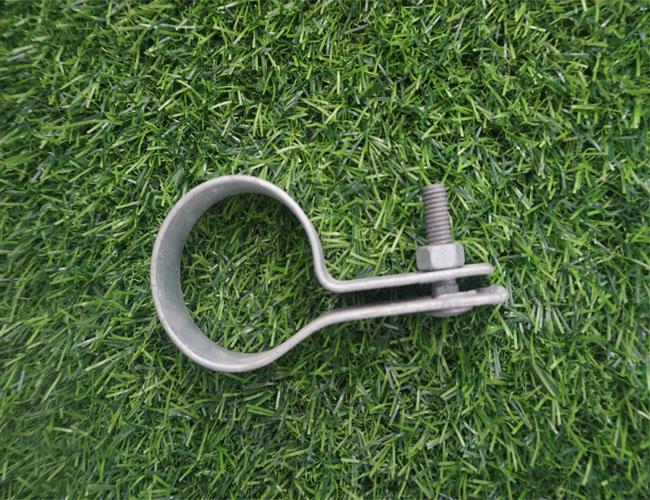

1-5/8" Galvanized Steel Tension Band Used As Chain Link Fence Fitting

This kind of 1-5/8” Tension Band connects to a tension bar to tighten the chain link fabric of your fence.

• Material is Galvanized;
• Advantage is rust resistant
• Nuts and bolts not included
• Application for 1-5/8” diameter posts

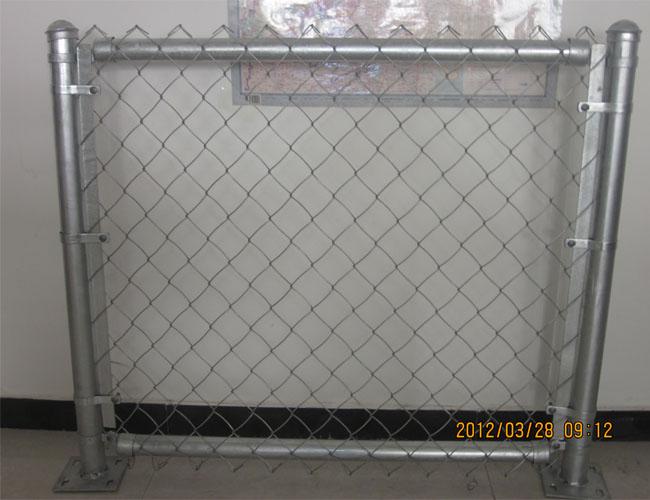

• Can be used for gate frames

Chain Link Fence tension bands Characteristics

• Strong, Galvanized Pressed Steel Construction
• Beveled Design is Stronger Than Flat Bands
• Use to Attach Chain Link Fabric to Your Terminal Posts
• Variety of Sizes for All Fencing Needs
• Galvanized for Rust Prevention

Where is it installed tension bands?

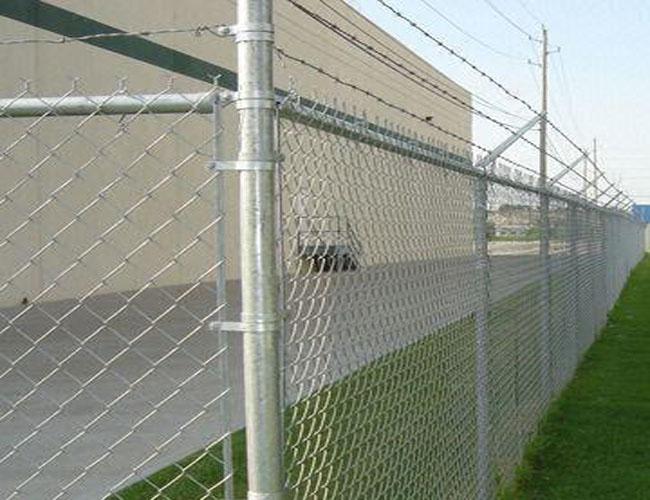

1-5/8” tension band is installed by sliding over the 1-5/8” terminal post once the post is set.

Tension bands will be evenly placed on each terminal post.

How many do you need tension bands?

You will need 1-5/8” tension bands for every stretch of fence.

The amount of tension bands you will need per terminal post is 1 less than the height of the fence.

For example, if you have a 4’ fence you will need (3ea) 1-5/8” Tension Bands per terminal post. There are two exceptions, if you have a 3’ or 3-1/2’ fence, you will need (3ea) 1-5/8” tension bands. For a full stretch of fence from terminal post to terminal post, you will need double the amount. Ex: For a stretch 4’ fence you will need (6ea) total 1-5/8” tension bands.

Tension Band Installation

Place the tension band around your post (or gate / panel frame). Stretch your fabric until the tension bar fits inside the arms of the tension band and you can insert the 5/16" x 1-1/4" carriage bolt. Tighten the nut to secure.
