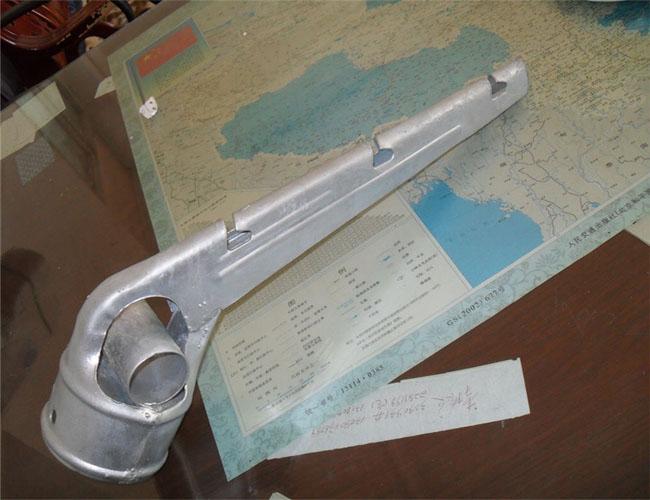

3 Strand Galvanized Steel Fence Barbed Wire Arm , Chain Link Fence Barbed Wire Arms
3-Strand Galvanized Metal Fence Barbed Wire Arm On Chain-link Fence
Single barbed wire arms 45° ----one piece line arm-----3 strands
| Series Name | Barbed arm |
| Manufacturer Color/Finish | Galvanized |
| Color/Finish Family | Silver |
| Warranty | 10-year limited |
| Type | Barbed wire arm |
| Primary Material | Metal |
| For Use With | Chain-link fence |
It will be used with barb wire and chain link fence.
- Designed for use with 1-5/8-in line post and 1-5/8-in top rail
- Accommodates 3 strands of barb wire
- Provides strength and stability to barb wire
- Galvanized to provide strength and superior corrosion resistance
- Increases height of fence by 12-in
- Fence fitting used to hold barb wire in positio
Three-wire barbwire arms are the most popular fitting used to install barbwire on a chain link fence. Slip on to intermediate posts, slide top rail through, stretch chain link fence, and stretch barbwire last. Generally barbarms face out in relation to the fence, however 45° barbarms may be installed so barbwire side faces outside or inside of fence. Keep an eye on your helper who is installing them as it is very frustrating to get down the fence row a couple hundred feet with toprail to discover one was accidentally installed backwards!
Characteristics: firm structure, good steel property, high rust resistance.
Material: pressed-steel
Surface treatment: hot dipped galvanized
Wall thickness: 1.8, 1.9, 2.0, 2.5mm

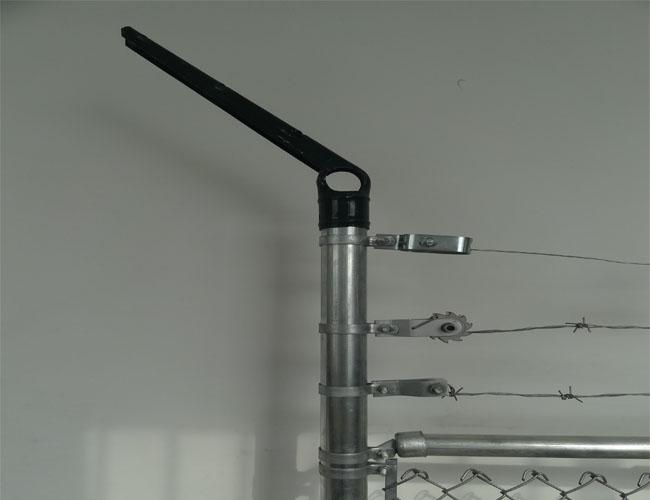

3-strand barbed wire arm Installation details
