Chain Link Fence Description
Chain Link Fence is also called diamond mesh or rhombic wire mesh fence. Our fence enjoys quality materials and uniform openings, smooth surface and nice appearance and good corrosion resistance. It is widely used in sports field, playground, stadium, airport and private building fencing. Galvanized chain link fence is made of galvanized wires which has features of good ductility and elasticity. However, plastic coating chain link fence is available as well.
Compared with the common chain link fence,XR chain link fence have following advantages:
- Enhance the configuration of chain link mesh size and wire gauge.
- Strenghten the bottom of the fence by means of bottom rail.
- Conbine with barbed wire on the top, side or bottom of the fence.
- Stronger framework.
- Adding anti-ram cable systems to resist vehicle penetration into a protected zone
Chain Link Fence Normal Size
Table 1 – Chain Link Fence Zinc Coated Wire Characteristics
| Nomal Coated Wire Dia. | Allowable Variance | Zinc Coated Weight(Mini) | Breaking Strength(Mini) | |||||||
| Class1 | Class2 | |||||||||
| Gauge | Inch | mm | Inch | mm | Oz/ft² | g/m² | Oz/ft² | g/m² | Ibf | Newtons |
| 8 | 0.192 | 4.88 | ±0.005 | ±0.13 | 1.2 | 366 | 2.0 | 6.10 | 2,170 | 9,650 |
| 9 | 0.148 | 3.76 | ±0.005 | ±0.13 | 1.2 | 366 | 2.0 | 6.10 | 1,290 | 5,740 |
| 11 | 0.12 | 3.05 | ±0.005 | ±0.13 | 1.2 | 366 | --- | --- | 850 | 3,780 |
Table 2 – PVC Coated Chain Link Fabric Fence Selection
| Recommended use | Mesh size (inch) | Normal coated wire size gauge | Height of fence fabric |
| Industrial/commercial | 2’’ | 6 | 36’’-144’’ |
| 9 | 36’’-144’’ | ||
| 11 | 36’’-144’’ | ||
| Industrial/Security | 1’’ | 6 | 36’’-144’’ |
| 9 | 36’’-144’’ | ||
| Security | 1’’ | 9 | 36’’-144’’ |
| 1’’ | 11 | 36’’-144’’ | |
| 3/4’’ | 9 | 36’’-144’’ | |
| 3/4’’ | 11 | 36’’-144’’ | |
| 5/8’’ | 9 | 36’’-144’’ | |
| 5/8’’ | 11 | 36’’-144’’ | |
| 1/2’’ | 9 | 36’’-144’’ | |
| 1/2’’ | 11 | 36’’-144’’ | |
| 3/8’’ | 11 | 36’’-144’’ | |
| Tennis Court | 1 3/4’’ | 9 | 36’’-144’’ |
| 11 | 36’’-144’’ |
Table 3 – Chain Link Fence Post Selection
| Line Post Description(OD) | Terminal Post Description (OD) |
| 2.375inch diameter pipe | 2.875in.diameter pipe |
| 2.25by 1.70in.C-Section | 2.875in.diameter pipe |
| 2.875in.diameter pipe | 4.0in.diameter pipe |
| 3.25 by 2.50 in. C-Section | 4.0in.diameter pipe |
| 4.0in.diameter pipe | 6.625in.diameter pipe |
| 4.5in.diameter pipe | 6.625in.diameter pipe |
| 6.625in.diameter pipe | 6.625in.diameter pipe |
| 8.625in.diameter pipe | 8.625in.diameter pipe |
Chain Link Fence Barb Wire Specification
Single strand barbed wire with single line wire and the twisted barbs fastened to the line wire.
Material: steel wire or stainless steel wire.
Wire diameter: 3.0 mm ± 0.05 mm.
Tensile strength: 1235 N/m2.
Barb
Material: iron wire.
Wire diameter: 2.0 mm ± 0.05 mm.
Tensile strength: 350 N/m2.
Length of barbs: 13 mm – 20 mm.
Distance between barbs: 60 mm ± 16 mm.
Galvanization: 240 g/m2.
Galvanization: 275 g/m2.
Chain Link Fence Fittings:
| Flat iron | supporting chain link fence |
| Brace band | connected with tensioner and post |
| Tension band | connected with flat iron and post |
| Tensioner | secure line wire |
| Line wire | folding chain link mesh |
| Tie Wire | secure the line wire,post and mesh |
| All kits could be pvc vinyl coated or galvanized coated. | |

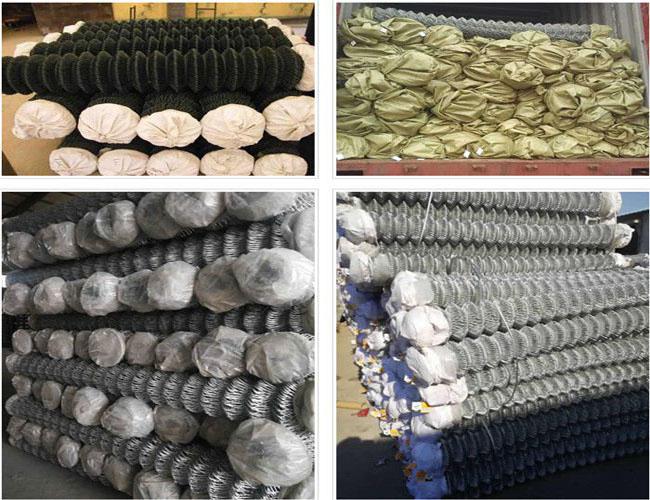

Packing and Loading
