Stainless Steel X-Tend Inox Cable Wire Rope Mesh Weather Resistant For Construction
7x7 Construction Stainless Steel X-tend Inox Cable Wire Rope Mesh Weather Resistant

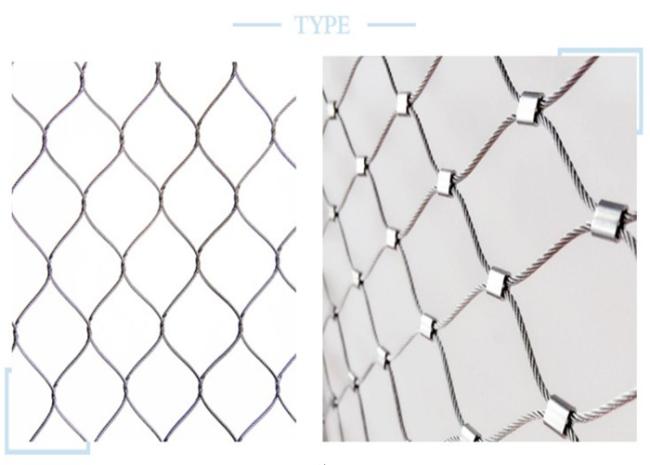

Stainless Steel Wire Rope Mesh is custom manufactured to in widths and lengths to suit your architectural application. Finished diamond mesh style when it is stretched at 60 degree angle ; Diagonal and irregular shapes can also be supplied. Mesh can be applied in either a vertical or horizontal direction, again dependent on the balustrade or railing design and the required aesthetics.
All of our products are made from High Grade 316 Stainless Steel,offering many advantages,including:
316 "marine grade" stainless steel
Innovative, highly durable product
Black anodised or galvanised finish options
Great prices
Professional, friendly service
Pliable, high strength mesh system
Wide range of sizes available
UV and weather resistant
Fast turnaround
Inox Cable Wire Rope Mesh Specification Sheet
|
Hole Size (Opening) |
1.2MM(3/64) (7 x 7 ) |
1.6MM(1/16) (7 x 7 ) |
2.0MM(5/64) (7 x 7 ) |
2.4MM(3/32) (7 x 7 ) |
3.2MM(1/8) (7 x 19 ) |
| 20 x 35mm | F-1235 | ||||
| 25 x 42mm | F-1225 | F-1625 | |||
| 30 x 52mm | F-1230 | F-1630 | F-2030 | ||
| 35 x 60mm | F-1235 | F-1635 | F-2035 | ||
| 38 x 66mm | F-1238 | F-1638 | F-2038 | F-2438 | |
| 40 x 69mm | F-1240 | F-1640 | F-2040 | F-2440 | F-3040 |
| 50 x 86mm | F-1250 | F-1650 | F-2050 | F-2450 | F-3050 |
| 60 x 104mm | F-1260 | F-1660 | F-2060 | F-2460 | F-3060 |
| 70 x 120mm | F-1270 | F-1670 | F-2070 | F-2470 | F-3070 |
| 76 x 131mm | F-1276 | F-1676 | F-2076 | F-2476 | F-3076 |
| 80 x 138mm | F-1280 | F-1680 | F-2080 | F-2480 | F-3080 |
| 90 x 154mm | F-1290 | F-1690 | F-2090 | F-2490 | F-3090 |
| 100 x 173mm | F-12100 | F-16100 | F-20100 | F-24100 | F-30100 |
| 120 x 206mm | F-12120 | F-16120 | F-20120 | F-24120 | F-30120 |
The application of stainless steel rope mesh
1. Green Facade - Cable System for Most Climbing Plants
2. Aviary Netting - Lightweight, Durable and Long Lasting
3. Cable Zoo Mesh - Solution to Enclosing Most Animals
4. Helipad Safety Net - Modular Heliport Webbing
5. Safety Net - Structural Measure to Prevent Suicide
6. Cable Mesh - Excellent Solution to Safety
7. Steel Mesh Balustrade - bridge, stair, balcony, path
