X-TEND Stainless Steel Cable Mesh INOX LINE Balustrade Railing 60 Degree Angle
X-TEND INOX LINE Balustrade Railing Stainless Steel Cable Mesh Webnet 60 Degree Angle
| Wire Rope Mesh Construction | Wire Rope Mesh Diameter | Wire Rope Mesh Opening |
| 7x19 | 1/8'' | 120x208mm |
| 7x19 | 1/8'' | 100x173mm |
| 7x19 | 1/8'' | 90x156mm |
| 7x7 | 3/32'' | 100x173mm |
| 7x7 | 3/32'' | 90x156mm |
| 7x7 | 3/32'' | 100x173mm |
| 7x7 | 3/32'' | 90x156mm |
| 7x7 | 5/64'' | 80x139mm |
| 7x7 | 5/64'' | 70x121mm |
| 7x7 | 5/64'' | 80x139mm |
| 7x7 | 5/64'' | 70x121mm |
| 7x7 | 1/16'' | 60x104mm |
| 7x7 | 1/16'' | 51x87mm |
| 7x7 | 1/16'' | 70x121mm |
| 7x7 | 1/16'' | 51x87mm |
| 7x7 | 3/64'' | 80x139mm |
| 7x7 | 3/64'' | 70x121mm |
| 7x7 | 3/64'' | 60x104mm |
| 7x7 | 3/64'' | 50x87mm |
Material of Wire Rope Mesh: Stainless steel 304,304L,316,306L etc.
| SS304 | (%) C:≤0.07, Si :≤1.0, Mn :≤2.0, Cr :17.0-19.0, Ni :8.0-11.0, S :≤0.03, P :≤0.035 |
| SS316 | (%) C:≤0.08, Si:≤1.00, Mn:≤2.00, P≤:0.035, S:≤0.03, Ni:10.0-14.0, Cr:16.0-18.5 |
| SS316L | (%)C:≤0.03, Si:≤1.00, Mn:≤2.00, P:≤0.045, S:≤0.030, Cr:16.0～18.0, Ni:12.0～15.0 |
Stainless Steel Wire Rope Mesh is custom manufactured to in widths and lengths to suit your architectural application. Finished diamond mesh style when it is stretched at 60 degree angle ; Diagonal and irregular shapes can also be supplied. Mesh can be applied in either a vertical or horizontal direction, again dependent on the balustrade or railing design and the required aesthetics.
The cable net ferrule type is rhombus mesh, has excellent flexible performance, virtually indestructible,
most impacting-resistant and breaking resistant force, most resisting rain, snow and hurricane.
Usage of stainless steel rope mesh
1. Green Facade - Cable System for Most Climbing Plants
2. Aviary Netting - Lightweight, Durable and Long Lasting
3. Cable Zoo Mesh - Solution to Enclosing Most Animals
4. Helipad Safety Net - Modular Heliport Webbing
5. Safety Net - Structural Measure to Prevent Suicide
6. Cable Mesh - Excellent Solution to Safety
7. Steel Mesh Balustrade - bridge, stair, balcony, path

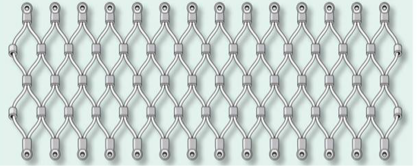

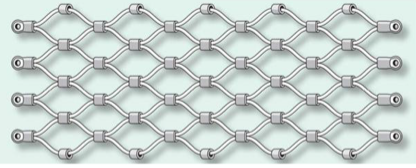

| MESH ORIENTATION | |
|
HORIZENTAL
|
VERTICAL
|
| FINISHED | |
|
ULTRASONIC BATH
|
BLACK OXIDE |
