7*7 Stainless Steel Wire Rope Mesh Architecture Ferrule Cable Net Build Guardrail Woven
Architecture Ferrule Cable Net Build Guardrail Woven Rope Mesh Handrail Stainless Steel Wire Rope Network
| Cable diameter | mesh opening | Application |
| 1.5mm | 50*50mm | Stairs Fence |
| 2.0mm | 60*60mm | Architecture outdoor mesh,Playground mesh |

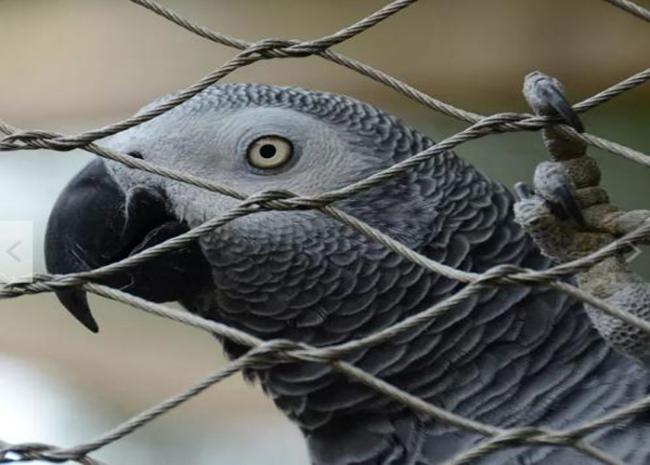

| 2.0mm | 80*80mm | decorative indoor mesh,Aviary mesh |
| 3.0mm | 40*40mm | Playground mesh |
| SS304 (%) C:≤0.07, Si :≤1.0, Mn :≤2.0, Cr :17.0-19.0, Ni :8.0-11.0, S :≤0.03, P :≤0.035 |
| SS316 %) C:≤0.08, Si:≤1.00, Mn:≤2.00, P≤:0.035, S:≤0.03, Ni:10.0-14.0, Cr:16.0-18.5 |
| SS316L (%)C:≤0.03, Si:≤1.00, Mn:≤2.00, P:≤0.045, S:≤0.030, Cr:16.0～18.0, Ni:12.0～15.0 |
product specification
| Wire Rope Construction | 7x7 and 7x19 |
| Wire Rope Diameter: | 1.2mm, 1.5mm, 1.6mm, 2.0mm, 2.4mm, 3.0mm, 3.2mm |
| Features |
Weather-Resistant, Non-Corroding and Corrosion Resistant. |
| Material: | stainless steel 304, 316, 316L |
| Mesh Aperture | 1x1", 1.5x1.5", 2x2", 3x3", 4x4" |
.Advantage:
1.The netting is clipped to the cable,
2. The mesh size and diameter can be modified
3. It can be made to customer orders and statically tested – especially suitable for facades
4. High strength, strong toughness, free-angles curving and fold, easy for transportation and
installment.
5. Anti-corrosive, resist the rust, can be repeated use.
6. Resists chewing by rodents and other pests (tensile strength approximately 100-110,000 PSI)
7.This product can bear the heavy snow and the gale very much.
8. without toxic material, safety, environmental protection.
