L300cm Modular Portable Accommodation Container Prefabricated Army Camp
Price:
USD2050/set~USD2100/set
MOQ:
4 sets
Delivery Time:
30 days
Brand:
KHOME
Product Description
Prefabricated Army Camp Modular Container Portable Accommodation
These manufactured army container homes are for camp accommodation projects.
We area able to built living accommodations, such as living quarters, temporary offices, welfare units,
fully equipped kitchen, dining hall, etc.
There are army container drawings for different customers.
The majority of our containers for military have the ISO 20ft standard container dimensions
(width: 3000mm; length: 6000 mm, height: 2800mm) and can be transported by ship, truck, rail.
Specification of Container House
| Specification: Standard Container | Length(mm) | 6000 |
| Width(mm) | 3000 | |
| Height(mm) | 2800 | |
| Roof Type | Flat Roof with drainpipes design | |
| Storey | ≦3 | |
| Structure | Corner Column | Galvanized Cold Roll Steel, Material:Q235 |
| Roof Beam | Galvanized Cold Roll Steel, Material:Q235 | |
| Roof Purlin | Galvanized Cold Roll C Steel, Material:Q235 | |
| Floor Beam | Galvanized Cold Roll Steel, Material:Q235 | |
| Floor Purlin | Galvanized Cold Roll C Steel, Material:Q235 | |
| Metal Surface Treatment | Using powder spray painted. | |
| Roof | Roof Steel Sheet | Color steel sheet, Color: White-gray |
| Insulation | Glass wool, with single side aluminum foil, Class A fire rating ( Non-combustible) | |
| Roof Ceiling | Color steel sheet, Color: White-gray | |
| Floor | Floor Surface | PVC Floor Leather. Color:Customized |
| Floor Board | MGO Board, 18mm thickness | |
| Wall | Color Steel Sheet | PE Coated steel color plate |
| Core Material | Rockwool (Density:50kg/m3), 50mm thickness | |
| Door | Specification (mm) | W*H=950*2030 |
| Material | Steel Door | |
| Window | Specification (mm) | W*H=950*1100 |
| Frame Material | PVC Steel | |
| Glass | 0.35mm double glass | |
| Electrical | Voltage | 220v-250v |
| Electrical Wire | Electrical Wiring:1.5mm, 2.5mm | |
| Air Breaker | High breaking miniature circuit breaker | |
| Lamp | Ceiling Lamp, 24W |

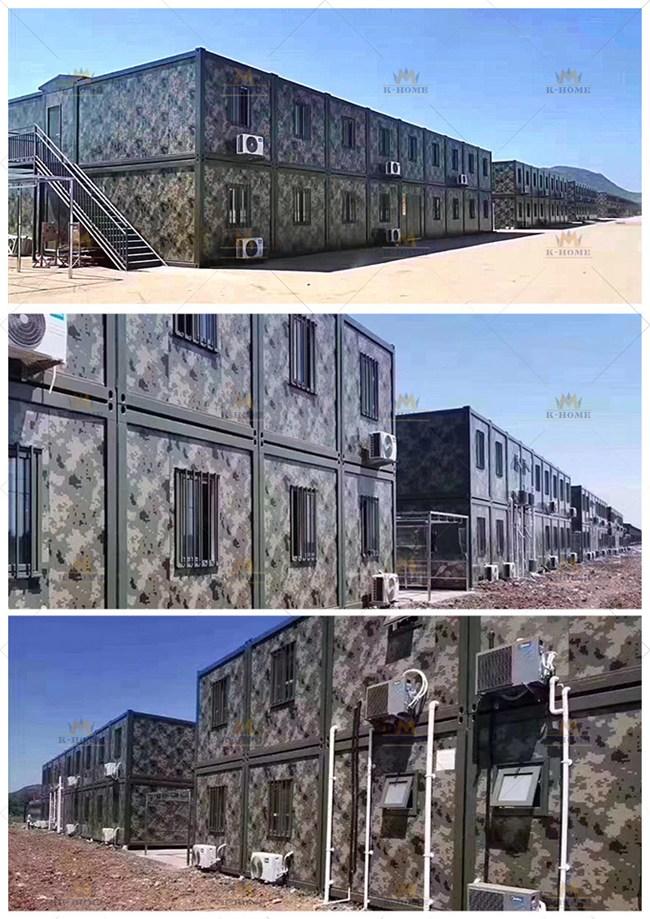

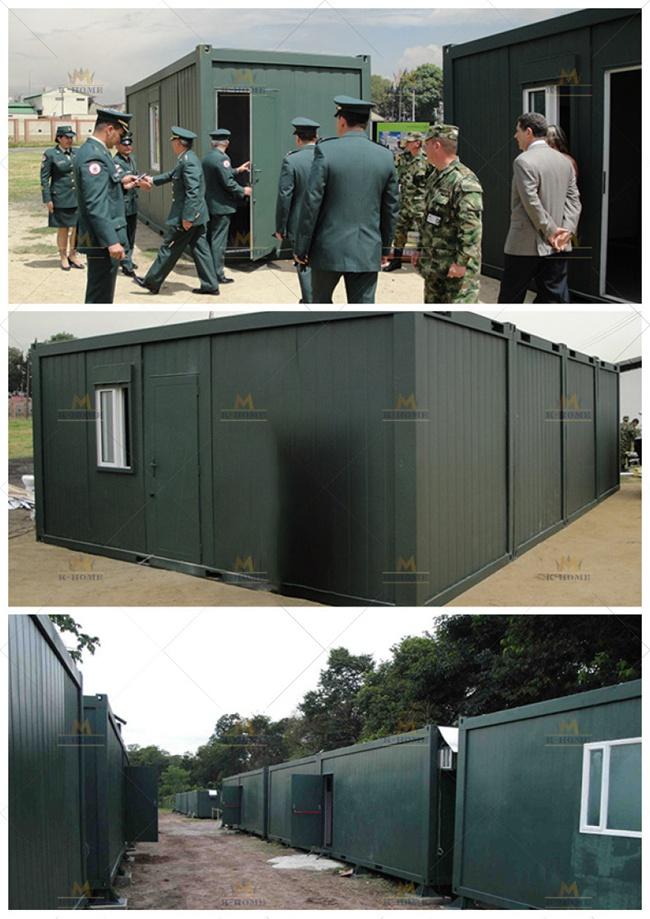

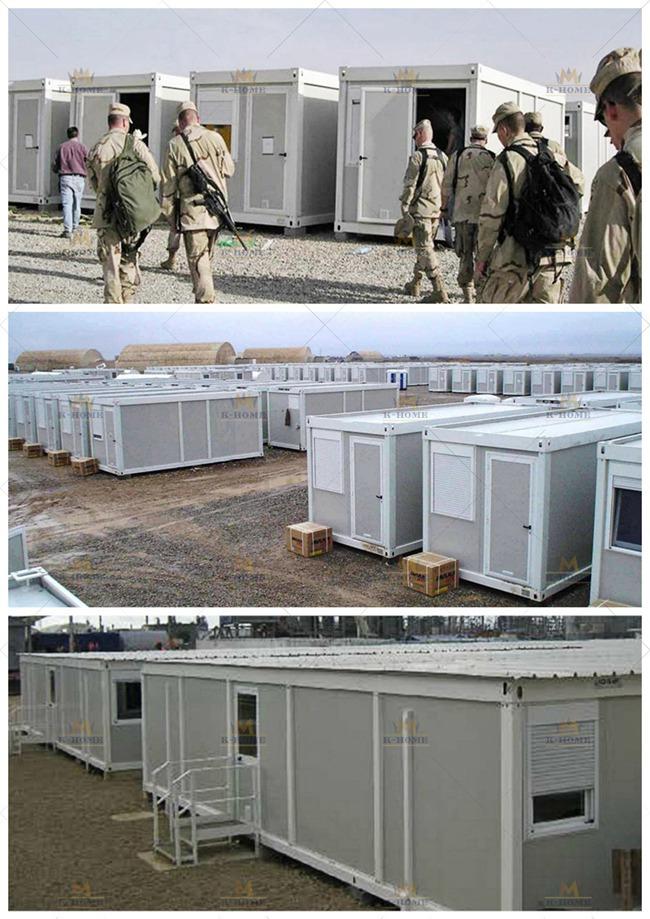

Project Case
