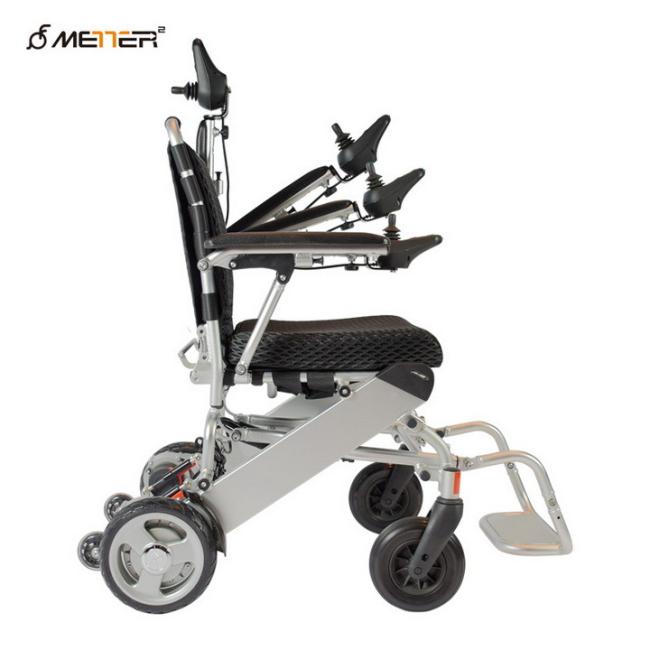

Lithium Ion Elderly 18 KG Lightweight Aluminium Wheelchairs
Portable Light Weight Handicapped Folding Electric Power Wheelchair
Model DYN-309
Description
1. 150W brush motor, longer using life with higher energy exchange rate.
2. Easy folding or unfolding, easy to carry as a luggage on plane or on train.
2. Small volume after folding, only 0.17 cbm.
3. Frame material: Light aluminum alloy.
4. 24V18AH removable lithium battery, easy to take and charge.
The product specifications you cared most
| Model Number | DYN309 | Type | Elecctric Wheelchair |
| Net Weight (without Battery) | 18 KG / 39.68 lbs | Battery Weight | 1.5 KG / 3.31 lbs |
| Distance | 18KM/ 11.16mi Or 36KM/22.37mi | Maximun Speed | 6KM/H |
| Load Capacity | 125kg/275.58lb | Charge Time | 4h |
| Battery Capacity | 24V 8AH Or 24V 16AH | Motor | 150W *2 brushless motor |
| Unfolded(LxWxH) size | 960x580x890mm | Seat Size | 400*440*60mm |
| Folded Size | 580*320*730mm | Packing Dimension | 650*360*820mm |
| Front Wheel | 7”*2 PU Tyre or 8”*2 Pneumatic tyres |
Rear Wheel | 9” Rubber wheel filled with PU |
| Joystick | Left, Right or Backrest***** | Cushion | Removable |
| Charger Input | 100-240 VAC 50/60Hz | Grade Ability | 10° |
| Anti-tip device | Yes | Seat Belt | Yes |
| Tools | Yes | Flip-up Armrest | Yes |
| Battery type | Lithium Ion Battery | Color | Yellow, Black, Red, Silver**** |
*Error and uncertainty in measurement
Packing
| Individual Package Weight | 25kg/55lb | # of PCS /Master Carton | 1pc |
| Individual Package Dimension (L*W*H) | 65*36*77cm | # of 20'' container | 162pcs |
| Packing | Carton All sides of the interior are protected by pearl cotton | # of 40'' container | 324pcs |
*Error and uncertainty in measurement
Company information
PF Wheelchair is research and development, manufacturing and sales enterprise. Specialized in Portable power wheelchair, Portable electric scooter, knee walker, and electric standing wheelchair. Products passed through ISO 13485, FDA and CE standard. We provide OEM service, great quality. "PF" as the registered trademark renowned for "Safe, Light and Portable" on the market. Products covers 20 Provinces in China and export to USA, UK, Canada, and Australia. PF wheelchair gained wide range recognition and trust from our customers. We will continue providing high quality products and service.
Service
1.We are wheelchair factory so our price will be the most competitive
2.We have profession engineer teams so our products ensure high quality and safety
3.We has integrated research and development and sales team so we will solve problems in 24 hrs
4.We accept customized LOGO and mass printing
FAQ
Q1: Why Choose PINGFANG Products?
We are one of the professional wheelchair factory here in China,
Best production capability, Best quality control, Best Service,
Q2: How is PINGFANG Products Quality?
We only supply quality products, our manufacturing facilities have received the ISO, CE, recognition, and get FDA certificate for some products .
Every products will inspected to the standard before shipment, and every product has one year warranty period.
Q3: Is the electric wheelchair foldable and portable?
Yes. Our electric wheelchair can be easily folded and unfold in 3 seconds, then it is so easy to put in the trunk of a vehicle, it is very convenient for traveling also.
Photoes
