3W 8ohm Raw Audio Speakers For TV Mobile Devices ISO2000 Certification
Price:
$0.2/pcs~$1/pcs
MOQ:
10kpcs
Delivery Time:
2-4 weeks
Brand:
YUESEN
Product Description
YDP3070-8 , commonly used accessories Raw Audio Speakers 3W,8ohm
We are a high-tech enterprise which integrates research, design, production and sales. Our products are widely used for TV, Mobile devices such as notebook, GPS, mobile DVD and so on.
General Specifications:
| Dimensions | 30*70mm |
| Rated Input Power | 3W |
| Maximum Input Power | 5W |
| Sound Pressure Level | 80±3dB 1M/1W At 0.8,1.0, 1.5, 2.0KHz |
| Impedance | 8Ω±15% |

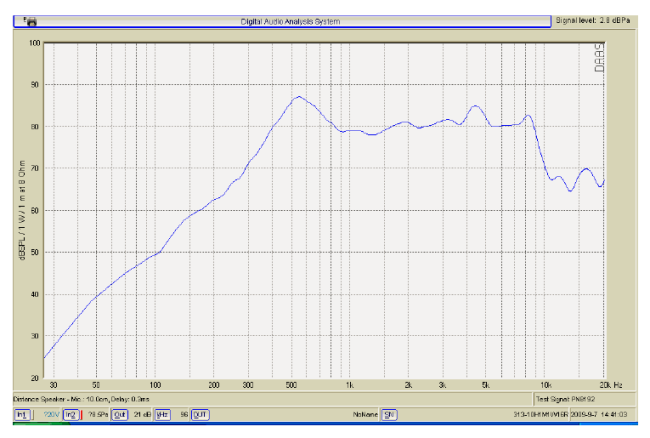

| Frequency Response | F0~8kHz(-10dB) |
| Operation | Must be normal. Program source 3W |
| Noise | Must be normal. Sine wave 4.9V |
| Heat Test | Shall be normal after test. 55±2℃ 96 hours |
| Total Flux |
Max Well |
| Humidity Test | Shall be normal after test. 40±2℃ 90~95%RH 16 hours |
| Load Test |
Shall be normal after test. Input Power: 3W White Noise Duration: 100 hours |
| Polarization |
When a positive DC current is applied to the terminal marked(+), diaphragm shall move forward |
| Net Weight | 20.6±1.5g |

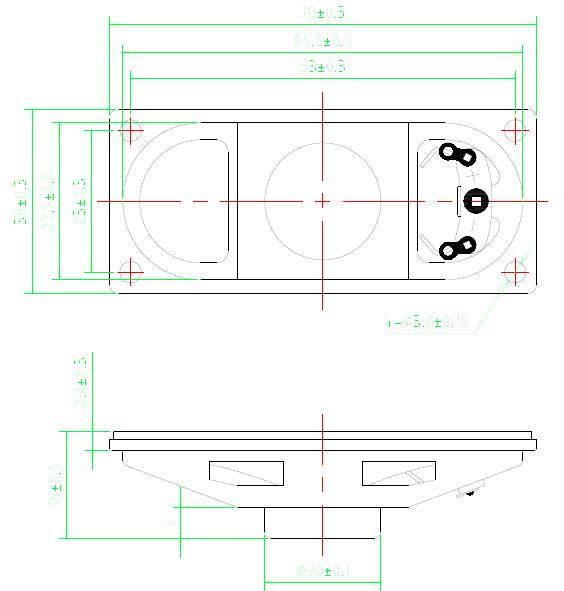

Drawing:
Product Processing:
