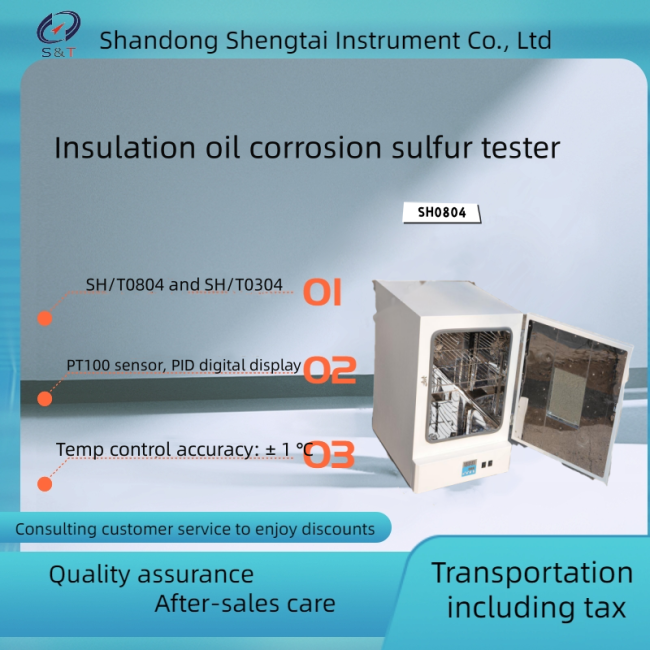

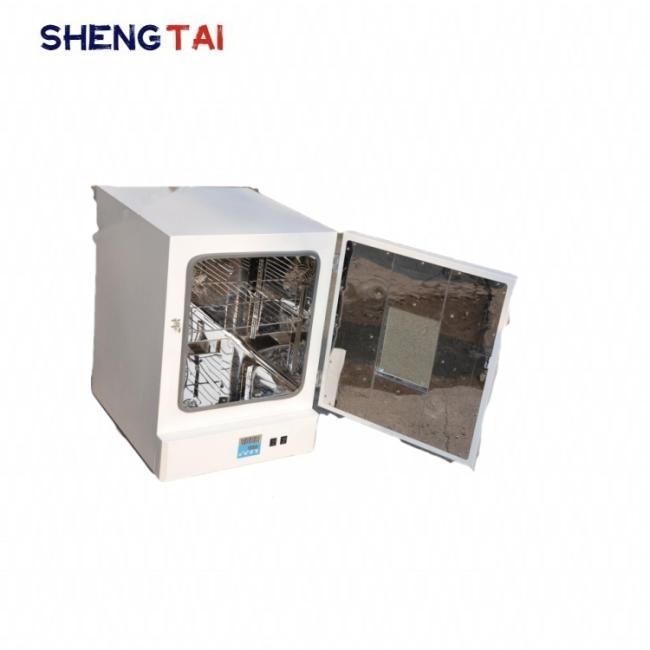

SH0804 electrical insulation oil corrosive sulfur tester is designed and manufactured according to the SH/T0804 standard; A test method suitable for detecting corrosive sulfur in mineral insulating oils used in power equipment that affects the operation of electrical equipment.

ASTM D1275 electrical insulation oil corrosive sulfur tester

Performance characteristics

• The surface of the instrument is treated with electrostatic spray molding, which is anti-corrosion and easy to clean
• Mirror stainless steel heating box with transparent observation window for easy operation and circular drum mode
• Microcomputer temperature control, using PT100 sensor and PID digital display, with high temperature control accuracy
• Equipped with a dedicated digital display timer, with time alarm function

Technical parameter

• Executive standards: SH/T0804 and SH/T0304
• Operating temperature: room temperature~200 ℃
• Temperature control accuracy: ± 1 ℃
• Temperature resolution: ± 0.1 ℃
• Timing range: 1-9999min
• Temperature control method: Microcomputer temperature control, using PT100 sensor and PID digital display
• Standard silver test piece: cold-rolled, 20 × forty × 0.5mm, purity 99.99

• Standard copper sheet: purity 99.9%, thickness 0.125-0.250mm, angle 60 degrees
• The surface of the instrument is treated with electrostatic spray molding, which is anti-corrosion and easy to clean
• Working power supply: AC220V 50Hz
• Power: 1.5KW
