Power Ac220v±10% 50hz Pensky Martens Closed-Cup Flash Point Tester For Oil Testing About 15kg

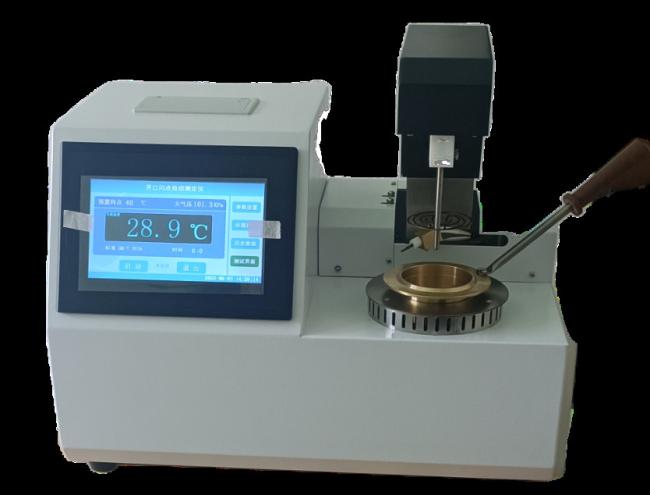

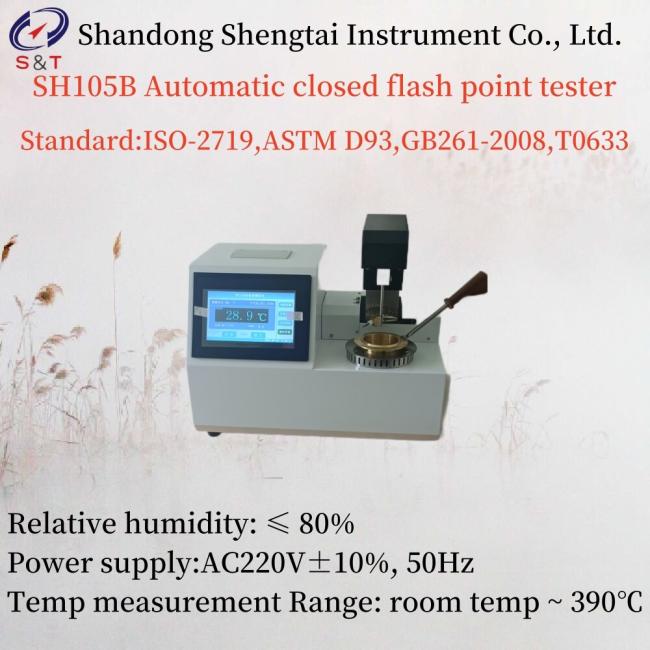

SH105B Automatic closed flash point tester
SH105B closed flash point automatic tester, is a centralized scientific research developed products.The instrument adopts microcomputer technology, large screen LCD display.
Instrument according to the standard method of heating, automatic rise and fall, automatic ventilation, automatic ignition, automatic display, automatic locking flash point value, automatic printing results.
After the test can be automatically cooled, to achieve the full automation of the work process.
It has the advantages of accurate measurement, good repeatability, stable performance and simple operation.
Widely used in electric power, petroleum, chemical, commodity inspection, scientific research and other departments.
In line with ISO-2719,ASTM D93, GB261-2008 standard T0633 liquid petroleum asphalt flash point meter (Tag closed cup method).
Pensky-Martens Closed-Cup Flash Point Tester for Oil Testing
ASTM D93 Closed Cup Flash Point Tester for Diesel Fuel
ASTM D93 Pensky-Martens Portable Oil Closed Cup Flash Point Test
Closed-Cup Flash Point Tester for Petroleum Products (Pensky-Martin method)
Instrument features
1. the use of color LCD large screen display, full Chinese man-machine dialogue interface, no logo keyboard, for the pre-value temperature, sample label, atmospheric pressure, test date and other parameters, with a prompt menu-oriented input.
2. Simulate tracking displays the function curve of temperature rise and test time. It has the function of Chinese wrong operation software to prompt modification and the parameter prompt function of test date, test time and so on.
3. Equipped with standard RS-323,485 computer interface, the lower computer stores 120 sets of historical data, the optional software can be connected with the computer to store data in large capacity and can be long-term storage, data transmission, the upper can modify the lower computer parameters in real time.
4. Automatically correct the influence of atmospheric pressure on the test and calculate the correction value.
5. computer operation, Chinese operation prompt interface, automatic detection, automatic printing reports.
6. open the lid, ignition, detection, printing data automatically completed, the test arm automatically rise and fall.
7. Electronic ignition, forced air cooling, without air source, automatic ignition.
8. without automatic ignition of air source, improve the safety of the test.
Main technical indexes and parameters
| Working power supply | AC220V±10%, 50Hz |
| Temperature measurement |
Range: room temperature ~ 390℃ Accuracy: ≥ 104℃ ± 2℃ ≤ 104℃ ± 1℃ Resolution: 0.1℃;Precision: 0.1 |
| Base parameters |
Heating speed: in line with GB/T261-2008 standard; Step A: Heating rate: 5 ～ 6℃/min Step B: Heating rate: 1.0 ～ 1.5℃/min Ignition mode: electronic ignition; |
| Stirrer: Electric stirring device |
(1) 90 ～ 120 RPM, suitable for test step A. (2) 250 ± 10 RPM, suitable for test step B. |
| Ambient temperature: (10 ～ 40) ℃ Relative humidity: ≤ 80% | |
| Power consumption of the whole machine: | not more than 500W. |
| Instrument size: overall size: 430 * 380 * 520 (mm), about 15kg | |
Packing List
| S/N | Name | Quantity | Unit | Remarks |
| 1 | Automatic closing flash point meter | 1 | set | |
| 2 | Oil cup | 1 | piece | |
| 3 | AC power cord | 1 | piece | |
| 4 | Printing paper | 1 | piece | |
| 5 | Operating instruction | 1 | piece | |
| 6 | packing list | 1 | copy | |
| 7 | Certificate of approval | 1 | copy |
