Ac220v±20% Petroleum Oil Usage Auto Kerosene Acidity Tester 50hz±10% Rated Power 200w

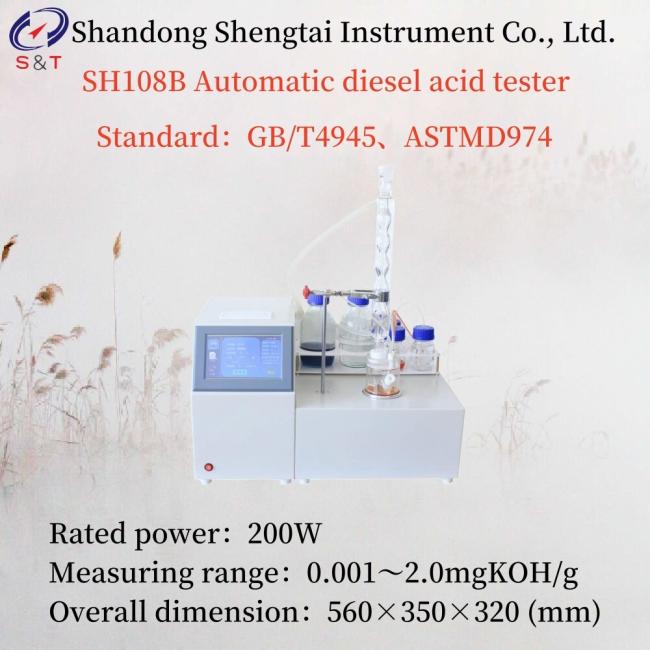

SH108B Automatic diesel acid tester
SH108B Automatic diesel oil acidity tester is designed and manufactured according to GB-T 264-1983 standard "Determination of acid value of petroleum products" and GB-T 7599-1987 standard "Determination of acid value of transformer oil and turbine oil in operation (BTB)" and GB/T258 gasoline, kerosene, diesel oil acidity determination method. Meet the standard GB/T4945 and ASTMD974
Adopt real color LCD touch screen full Chinese man-machine dialogue interface, menu-oriented input, advanced technology, easy to operate.
With automatic temperature control, automatic titration, automatic detection and printing of test results, automatic cleaning and discharge of waste liquid, so that the whole test process automation.
Widely used in electric power, petroleum, commodity inspection, scientific research and other departments.
ASTM D974 Fully Automatic Oil Acid Value Tester
ASTM D974 Fully Automatic Diesel Oil Acidity Tester
Petroleum Oil Usage Auto Kerosene Acidity Tester
Main functions and features
1. 7-inch true color touch screen
2. Adopt 32-bit microprocessor as the main control core, a new generation of intelligent operating system
3. Automatic control of the whole process of acid titration, automatic determination of color end point
4. Program temperature control heating bath, automatic boiling reflux
5. Automatically discharge waste liquid and clean the reaction bottle after the test
6. With automatic data query function, it is convenient to search and print, and can store 50 groups of history records
7. Lightweight design of the whole machine, beautiful and durable
8. High precision perpetual calendar clock, accurate time
Technical indicators
| Power supply | AC220V±20% 50Hz±10% |
| Measuring range | 0.001～2.0mgKOH/g |
| Differentiation rate | 0.0001 mg KOH/g |
| Display | 7-inch LCD touch screen |
| Color detection | high-precision RGB color sensor |
| Adoption method | reflux method (fully implement national standard) |
| Injection method | peristaltic pump |
| Printing machine | 58mm miniature thermal printer |
| Overall dimension | 560×350×320 (mm) |
| Rated power | 200W |
| Relative humidity | <85% RH |
| Weight | About 20kg |
Packing list
| S/N | Name | Unit | Quantity | Remarks |
| 1 |
Full-automatic acid value tester host tester host |
set | 1 | |
| 2 | Titration cell | piece | 1 | |
| 3 | Automatic waste disposal system | set | 1 | On the host |
| 4 | Automatic flow request system | set | 1 | On the host |
| 5 | Color sensor | piece | 1 | On the host |
| 6 | Stirrer | piece | 1 | |
| 7 |
Condenser clamp |
piece | 1 | |
| 8 | Condenser tube | piece | 1 | |
| 9 | Reagent bottle rack | piece | 1 | |
| 10 | Oil injector | piece | 1 | 5mL |
| 11 | Teflon plug for titration cell | piece | 4 | Set of 4 |
| 12 | Blue cap glass bottle | piece | 2 |
500mL: ethanol, waste liquid bottle, glass reagent bottle |
| 13 | Polyethylene bottle | piece | 3 |
100mL: indicator, buffer bottle .Washing bottle, glass reagent bottle |
| 14 | Water pump pipe | set | 1 | Connected to condensate pipe |
| 15 | indicator | piece | 1 | |
| 16 | KOH for gas washing | piece | 3 | Add 100mL distilled water to each bag |
| 17 | Neutralization solution | piece | 1 | Enter the neutralization solution concentration according to the bottle identification |
| 18 | Standby pump pipe | set | 1 | |
| 19 | power cord | piece | 1 |
20 |
Fuse tube | piece | 2 | 6A |
| 21 | Printing paper | copy | 6 | |
| 22 | instruction manual | copy | 1 |
