Heating Power ≤3.4KW Automatic Distillate Fuel Oil Oxidation Stability Instrument AC220V±10% 50Hz

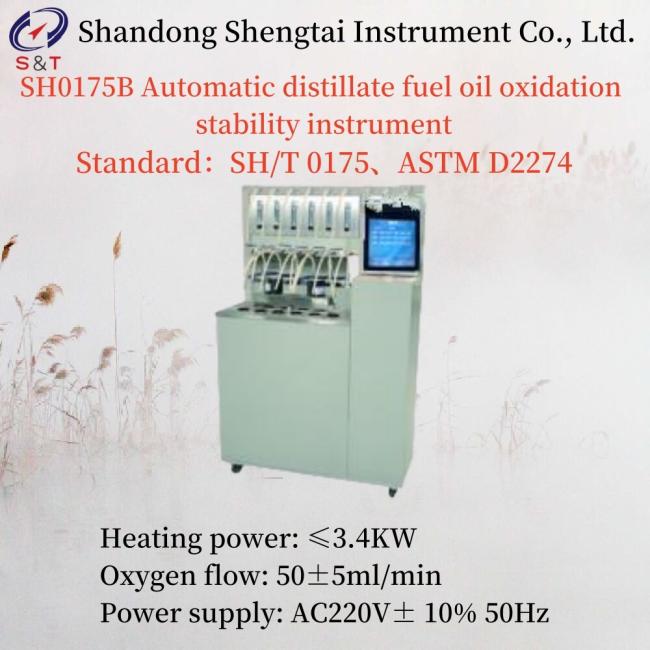

SH0175B Automatic distillate fuel oil oxidation stability instrument
SH0175B automatic distillate fuel oil oxidation stability meter is designed and manufactured according to the requirements of the People's Republic of China industry standard SH/T 0175 "Distillate fuel oil oxidation stability determination method (acceleration method)" and ASTM D2274.
It is suitable for the determination of intrinsic stability of intermediate distillate fuel oil by accelerated oxidation method according to the method specified in SH/T 0175 standard.
This instrument is the oil production, production, use units, the relevant universities, scientific research departments and so on test distillate fuel oil oxidation stability performance of an automatic instrument.
ASTM D2274 Automatic Oxidation Stability Tester for Distillate Fuel Oil
Automatic Lubricating Oils Oxygen Bomb Stability Tester Equipment ASTM D2274
performance characteristics
①The instrument is suitable for the determination of distillate fuel oil (diesel) oxidation stability.
②The instrument adopts single-chip microcomputer control, automatic detection, temperature program, automatic timing, automatic charging and stopping of oxygen.
③The test results can be automatically calculated according to the input parameters and can be stored, consulted, printed, downloaded, the whole test process without personnel on duty.
④7 inch color LCD touch screen, full Chinese operation interface, real-time display of various parameters.
⑤The heating bath is made of metal bath material, without bath liquid, and the test process is more convenient and environmentally friendly.
⑥Oxygen flow is controlled and adjustable, imported compressor low temperature circulating water system, oxidation and cooling process is automatically completed once.
The built-in light protection device, ensure that the sample in the oxidation process light protection.
⑦With secondary decompression device.
⑧Equipped with obscura and filter device.
Technical indicators
① Power supply: AC220V± 10% 50Hz
② Heating power: ≤3.4KW
③ Temperature control accuracy: 95±0.1℃
④ Oxygen flow: 50±5ml/min
⑤ Number of oxidation tubes: 4 groups
⑥ Dimensions: 520×420×510 (mm)
⑦ One-time automatic completion.
The built-in light device to ensure that the sample in the process of oxidation light.
⑨ With secondary decompression device.
10. Equipped with camera obscura and filter device.
| Product name | SH0175B automatic distillate fuel oil oxidation stability meter |
| Power supply | AC 220 V±10%, 50 Hz |
| Heating power | ≤3.4KW |
| Temperature control mode | 95±0.1℃ |
| Oxygen flow | 50±5ml/min |
| Number of oxidation tubes | 4 groups |
| Dimensions: 520×420×510 (mm) weight: 35kg | |
| The built-in light device to ensure that the sample in the process of oxidation light. | |
packing list
| S/N | Name | Quantity | Unit | Remarks |
| 1 | Distillate fuel oil oxidation stability tester host | 1 | set | |
| 2 | Equipped with black box | 1 | set | |
| 3 | Oxidation tube | 4 | piece | |
| 4 | condenser | 4 | piece | |
| 5 | Oxygen tube | 4 | piece | |
| 6 | Glass thermometer | 1 | piece | (50℃～100℃) |
| 7 | Bath cover | 4 | piece | |
| 8 | Hose (inside diameter φ 6) | 4 | piece | Flowmeter outlet to glass oxygen pipe - 50 mm/piece |
| 9 | Hose (inside diameter φ 6) | 1 | meter | For water inlet and outlet of glass condensate pipe, the length of each section shall be cut as required |
| 10 | Power cord | 1 | copy | |
| 11 | External circulation refrigeration device | 1 | set | |
| 12 | Instruction | 1 | copy | |
| 13 | Packing list | 1 | copy | |
| 14 | Certificate warranty card | copy |
