ASTM D4870 Test Range 0.5% M/M Residual Fuel Oil Total Sediment Analyzer Overall Power 1000W

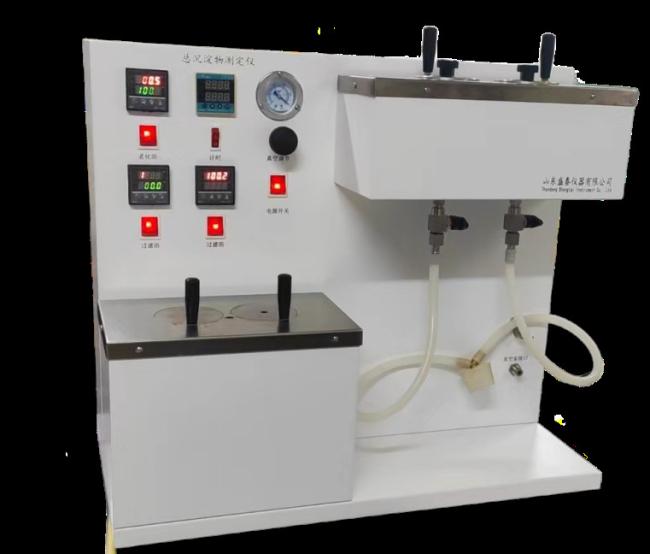

SH0702 Residual Fuel Oil Total Sediment Analyzer

SH0702 Residual Fuel Oil Total Sediment Analyzer is designed and manufactured in accordance with the standards of SH/T0701 and SH/T0702 Residual Fuel Oil Total Sediment Determination Method (Aging Method, Heat Filtration Method), as well as ASTM D4870. This method is suitable for determining the total sediment in residual fuel oil with a viscosity of less than 55mm2/s at 100 ℃ and distillate fuel oil containing residual components.

This instrument is suitable for the total sediment in residual fuel oil and distillate fuel oil containing residual components

Product features:

● Equipped with a dedicated aging bath;

● Standard filtering elements with heating and cooling coils;

● Glass fiber filter paper with a pore size of 0.0016mm and a diameter of 47mm;

● Stainless steel ball valve switches between heat and cold sources;

● Digital display time relay controls working time;

● Micro computer PID temperature controller, PT100 temperature sensor, high temperature control accuracy;

Technical parameter

●Test sample: 25g

●Waste flask capacity: 500ml

● Test range: 0.5% (m/m)

● Test position: 2 units

●Filter paper: aperture 0.0016mm, diameter 47mm

●Vacuum pressure: 40kPa

●Applicable standards: SH/T0701 SH/T0702 ASTM D4870

●Working power supply: AC220V 50HZ

● Overall power: 1000W

●Instrument size: 570 * 600 * 650mm

●Net weight: 36KG

Packing list

Accessories that need to be prepared by oneself:

1. Electronic balance (1/10000)

2. Drying oven

3. Glass drying vessels (with silicone desiccant)

4. Graduated washing bottle or syringe 25ml

5. Mixing rod glass and glass beaker 30ml

6. High speed mixer 400r/min

7. Weighing bottle or dish

8. Glass fiber filter paper

SH0702 Residual Fuel Oil Total Sediment Analyzer is designed and manufactured in accordance with the standards of SH/T0701 and SH/T0702 Residual Fuel Oil Total Sediment Determination Method (Aging Method, Heat Filtration Method), as well as ASTM D4870. This method is suitable for determining the total sediment in residual fuel oil with a viscosity of less than 55mm2/s at 100 ℃ and distillate fuel oil containing residual components.

This instrument is suitable for the total sediment in residual fuel oil and distillate fuel oil containing residual components
