GB/T 6433 Soxhlet Extraction Method For Crude Fat Determination Sealed Metal Bath Heating

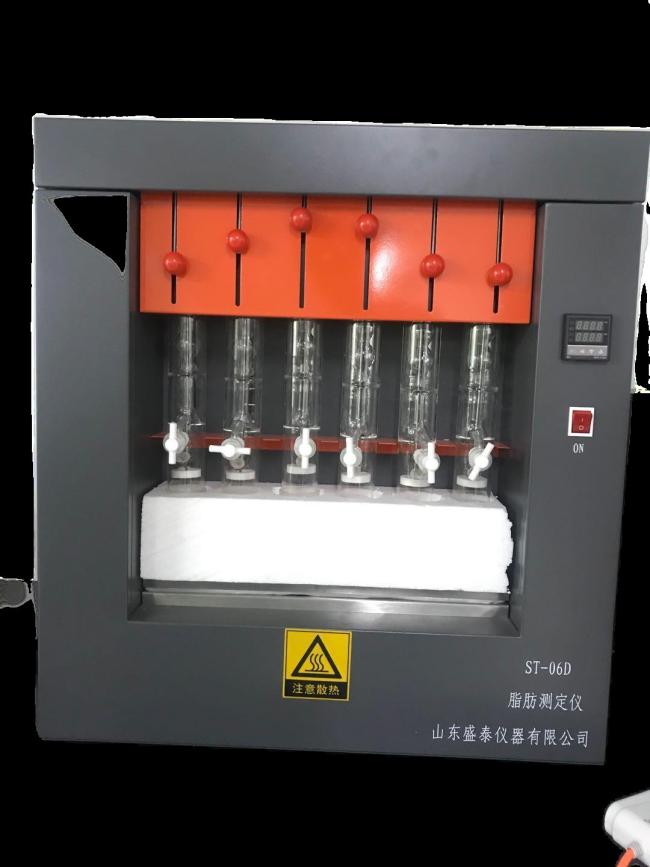

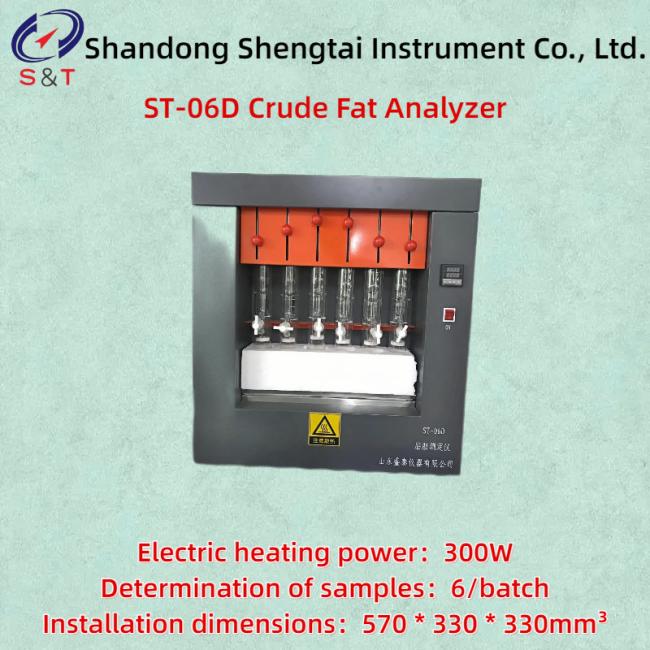

ST-06D Crude Fat Analyzer
Crude Fat Analyzer ST-06D is base on the Soxhlet extraction principle and integrates functions: soaking, extraction, leaching, heating, condensation and solvent recovery.
Sealed metal bath heating with automatic temperature control, ensuring uniform heating and safe operation, Six samples can be tested at the same time, and optimal temperature can be selected according to the difference between reagent boiling point and ambient temperature so as to achieve quick analysis. Reagents can also be recycled to reduce test cost. Soaking, extraction and solvent recovery can be done in one step.
Crude Fat Analyzer Machine by Soxhlet Extraction Method
Features:
Instrument has compact structure, easy operation, good sealing performance, temperature uniformity and high measurement precision, etc. One can do at the same time the sample is six.
Technical indicators:
Measuring range:oil content was 0.5% ~ 60% within the scope of the food, feed, oils and fats products；
Determination of samples:6/batch；
Power supply voltage:220V frequency 50HZ；
Electric heating power:300W；
Temperature control range:at room temperature to 100℃；
Installation dimensions:570 * 330 * 330mm³；
Weight:23kg
| Measure Range | Grain, feed, oil and various fat products with oil content ranging from 0.5% to 60% |
| Measure quantity | 6 samples at same time |
| Solvent reclaim rate | ≥ 80% |
| Heating | Hot plate |
| Heating time | in 10minutes |
| Temperature control range | Room temperature+5C～300℃ |
| Power supply | AC220V50HZ |
| Size:570*330*655mm Weight:23kg | |
| Electric heating plate heating, fast speed, automatic recovery, uniform heating and automatic recovery, including soaking and extraction process, shorten working time, and more compact and beautiful appearance. | |
Features:
Instrument has compact structure, easy operation, good sealing performance, temperature uniformity and high measurement precision, etc. One can do at the same time the sample is six.
Technical indicators:
Measuring range:oil content was 0.5% ~ 60% within the scope of the food, feed, oils and fats products；
Determination of samples:6/batch；
Power supply voltage:220V frequency 50HZ；
Electric heating power:300W；
Temperature control range:at room temperature to 100℃；
Installation dimensions:570 * 330 * 330mm³；
Weight:23kg
| Measure Range | Grain, feed, oil and various fat products with oil content ranging from 0.5% to 60% |
| Measure quantity | 6 samples at same time |
| Solvent reclaim rate | ≥ 80% |
| Heating | Hot plate |
| Heating time | in 10minutes |
| Temperature control range | Room temperature+5C～300℃ |
| Power supply | AC220V50HZ |
| Size:570*330*655mm Weight:23kg | |
| Electric heating plate heating, fast speed, automatic recovery, uniform heating and automatic recovery, including soaking and extraction process, shorten working time, and more compact and beautiful appearance. | |
