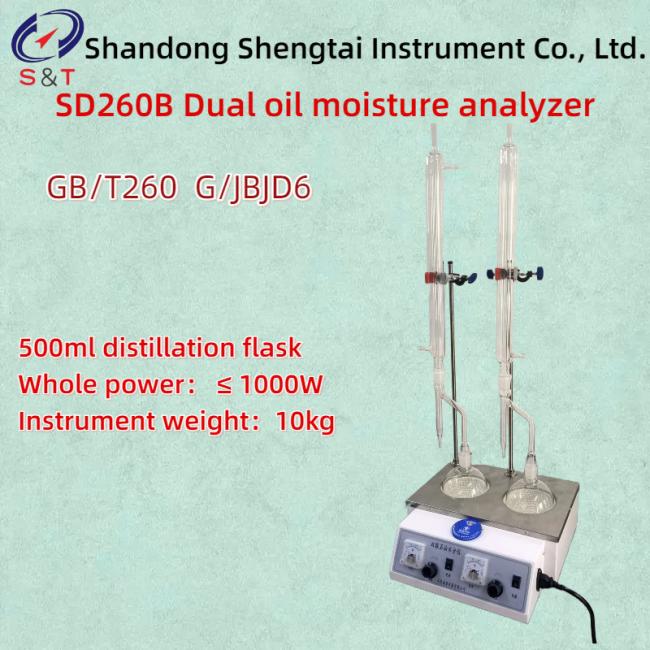

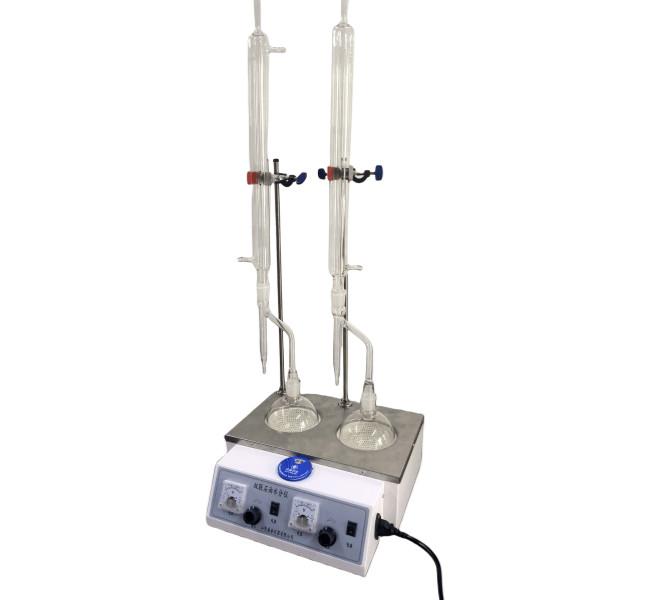

SD260B Dual oil moisture analyzer

The SD260B petroleum moisture analyzer is designed and manufactured according to the requirements of the Chinese standard GB/T 260 "Determination of Moisture in Petroleum Products", which complies with GB/T 2288-2008 "Determination of Moisture in Coking Products - First Method Distillation Method" and G/JBJD6 "Technical Conditions for Petroleum Product Moisture Testers". This instrument is suitable for determining the moisture content in petroleum products according to the test method specified in GB/T 260 standard, as well as for determining the moisture content in lubricating grease according to the test method specified in GB/T 512 "Lubricating grease moisture determination method". Compliant with ASTM D95.

Technical features and parameters

● The design of this instrument fully complies with the requirements of GB/T260 and G/JBJD6 standards.

● The design of the test vessel clamp is reasonable, and the installation and disassembly of the condenser tube are convenient.

● Two sets of experiments can be conducted simultaneously, requiring external circulation of cooling water.

● Heating by electric heating distillation method

● Distillation flask volume: 500ml

● Working power supply: AC 220V ± 10% 50Hz

● Heating power of electric furnace: 1000W

● Temperature measurement range: Room temperature -300 ℃

● Environmental temperature: ≤ 35 ℃

● Relative humidity: ≤ 85%

● Power consumption of the whole machine: ≤1100W

● Instrument size: 47 * 36 * 29cm

● Instrument weight: 10kg

● Packaging size: 50 * 38 * 32 cm

● Packaging weight: 13kg

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Reagent:Solvent (initial boiling point not less than 50 degrees DC gasoline) oleic acid or stearic acid anhydrous calcium chloride: chemically pure

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
