Semi Automatic Density Tester For Petroleum Crude Oil 500ml Test Tube ASTM D1298

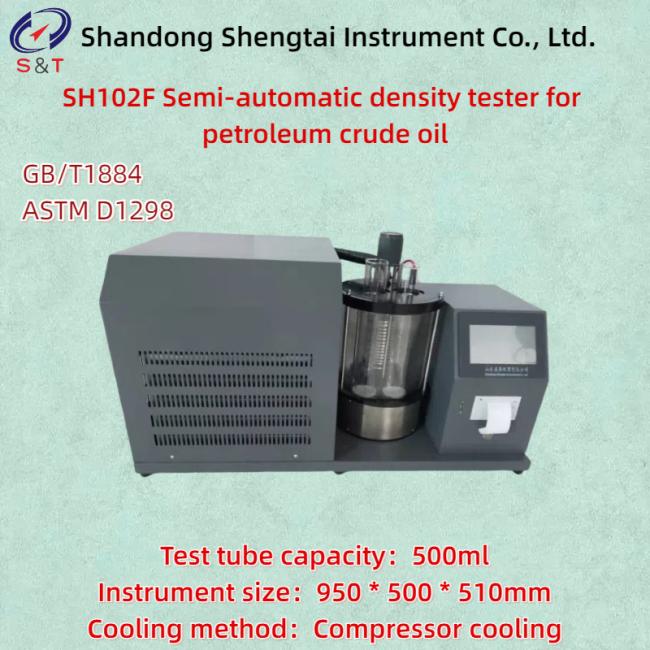

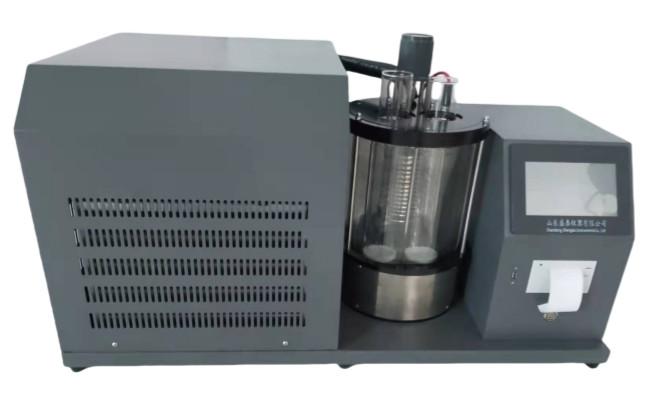

SH102F Semi-automatic density tester for petroleum crude oil

SH102F Petroleum Crude Oil Product Density Tester This instrument is designed and manufactured in accordance with the requirements specified in the Chinese standard GB/T 1884 "Determination of Density of Petroleum and Liquid Petroleum Products (Density Meter Method)" and ASTM D1298 and GB/T2281-2008 "Density Test Method for Coking Oil Products". It also complies with GB36170-2018 "Crude Oil" and SH0068 "Determination of Density or Relative Density of Engine Coolants and Their Concentrates (Density Meter Method)". It is a liquid petroleum product density tester developed by our company and is suitable for determining the density of crude oil and liquid petroleum products. At the same time, it can also measure the density of chemical products, in accordance with GB/T4472 "Determination of Density and Relative Density of Chemical Products".

Technical performance parameters:

● Compliant with standards: GB/T1884,ASTM D1298

● Temperature measurement range: 0-100 ℃ or (customized -60 ℃ -80 ℃)

● Temperature control accuracy: 0.1 ℃

● Test tube capacity: 500ml

● Mixing device: electric mixing device

● Cooling method: Compressor cooling

● Temperature sensor: Industrial high-precision PT100 sensor

● Adopting a color LCD large screen display, a fully Chinese human-machine dialogue interface, and an unmarked keyboard,

● Printing interface: Enter the density value to automatically print the petroleum density value.

● Result output: It can also be equipped with a USB drive output function to output to the PC for long-term storage

● Data storage: USB data export function

● Printer: equipped with a micro printer

● Power consumption of the whole machine: not exceeding 2000W

● Working power supply: AC220V ± 10% 50Hz

● Instrument size: 950 * 500 * 510mm

● Instrument weight: 48.83kg

● Packaging size: 1060 × 620 × 610mm

● Weight: 62kg

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
