0.5 Level Kederan Gel Strength Tester Range 200N 0.5～500mm/min GB28304

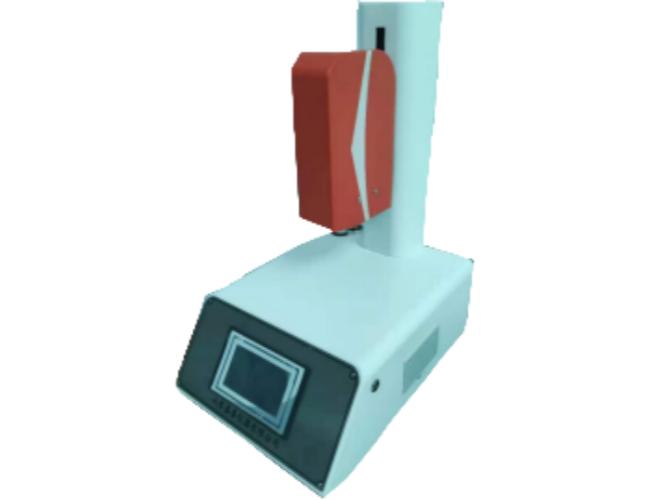

ST-16B Kederan gel strength tester
ST-16B can be used to measure the gel strength of can be natural glue. It is designed and manufactured in strict accordance with GB28,304 can be used to test the gel strength value of can natural glue or the force value under preset conditions.
This instrument is easy to operate, does not need complex training, one key operation, and real-time automatic display of atlas and results.
Technical characteristics:
● Microcomputer control, menu interface, PVC operation panel, and large liquid crystal display.
● You can set parameters, view, and other functions
● Carry out statistical analysis and operation of groups of samples, and give the maximum and minimum values
Technical parameter
| Force measurement unit | N, g/cm3 |
| Test speed | 0.5 ～ 500mm/min can be set at will |
| Length unit | 0.5 level |
| Range | 200N |
| Journey | 300mm |
| Function | gel strength value or maximum value |
| Power supply | 220V 50Hz (or 110V, 60Hz) |
| Fixture configuration | 0.5cm diameter stainless steel piston cylinder |
Note: the appearance picture and size, volume and weight of the instrument are for reference only. If the instrument is updated, there may be a few changes, and no further notice will be given.
Packing list
| No. | Name | Quantity | Unit | Note |
| 1 | Host | 1 | Unit | |
| 2 | Cylindrical probe | 1 | Piece | |
| 3 | Power cord | 1 | Strip | |
| 4 | Fuse tube | 1 | Piece | |
| 5 | An instruction manual | 1 | Copy | |
| 6 | Certificate warranty card | 1 | Copy |
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
The instrument materials provided are brand-new, in line with the national quality standards and with the manufacturer's certificate of goods;
The materials and main components provided meet the technical requirements specified in the technical data;
The warranty period of the whole equipment is one year (excluding normal wear of vulnerable parts).
We are responsible for free maintenance of the instrument quality problems during the warranty period. Due to the user's responsibility for equipment failure, we are responsible for maintenance and reasonable charges.
The equipment is supplied with spare parts for a lifetime, and the whole machine is maintained for a lifetime.
After the expiration of the warranty period, when the user needs maintenance and technical services, we only charge the cost.
