Libe Oil Semi-Automatic Density Tester 0-100℃ Compressor Cooling ASTM D1298

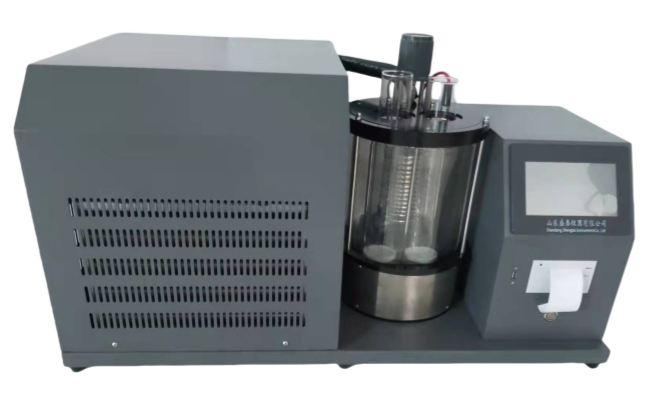

SH102F Semi-automatic density tester for petroleum crude oil
SH102F Petroleum Crude Oil Product Density Tester designed and manufactured in accordance with the Chinese standard GB/T 1884 "Determination of Density of Petroleum and Liquid Petroleum Products (Densimeter Method)" and the requirements specified in ASTM D1298 and GB/T2 281-2008 for the density of coking oil products. It also complies with GB36170-2018. Crude oil is a density tester for liquid petroleum products developed by our company and is suitable for measuring the density of crude oil and liquid petroleum products. At the same time, it can also measure the density of chemical products, in accordance with GB/T4472.
Standard: GB/T 1884 ASTM D1298 GB/T2 281 GB36170 GB/T4472
Technical performance
● Temperature sensor: industrial high-precision PT100 sensor
● Featuring a large color LCD screen display, a fully Chinese human-machine dialogue interface, and an unmarked keyboard,
● Printing interface: Input density values to automatically print petroleum density values.
● Result output: It can also be equipped with a USB flash drive output function, which can be output to the PC for long-term storage
● Data storage: USB flash drive data export function
● Printer: Equipped with a micro printer
Product Paramenters
| Standard | GB/T 1884 ASTM D1298 |
| Temp measurement range | 0-100℃ (or customized-60℃-80℃) |
| Temp control accuracy | 0.1℃ |
| Test tube volume | 500ml |
| Mixing device | electric mixing device |
| Cooling method | Compressor cooling |
| Temp sensor | Industrial high-precision PT100 sensor |
| Date storage | USB |
| Printer | Microprinter |
| Whole power | No more than 2000W |
| Power supply | AC220V±10% 50HZ |
| Instrument size | 950*500*510mm |
| Instrument weight | 48.83kg |
| Package size | 1060×620×610mm |
| Package weight | 62kg |
Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
Packing list
| S/N | Name | Quantity | Unit | Remarks |
| 1 | Host | 1 | Unit | |
| 2 | Density tube | 1 | Set | |
| 3 | Power cord | 1 | Root | |
| 4 | Fuse tube | 1 | Piece | |
| 5 | Measuring cylinder500ml | 2 | Piece | |
| 6 | Instruction manual | 1 | Copy | |
| 7 | Packing list | 1 | Copy | |
| 8 | Warranty card | 1 | Copy |
