Closed Gear Oil Foam Tester 0℃ ～ 99.9℃ Flow 16 ～ 160ml/Min Timing ±1s ASTM D892

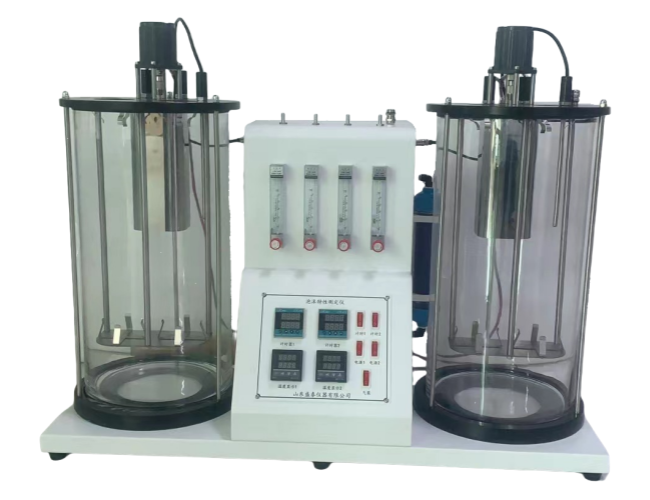

SH126 Lubricating oil foam tester with refrigeration
SH126 lubricating oil foam characteristic tester meets the requirements of GB/T 12579 and ASTM D892. It is applicable to the determination of foam tendency and foam stability of lubricating oil under standard conditions. It is used to measure the tendency and stability of foam formation of fire-resistant oil, lubricating oil, Gear oil, hydraulic oil and other oil products.
Instrument characteristics
This instrument adopts a digital PID temperature automatic control system with high temperature control accuracy; The display adopts high-definition color touch display, which is intuitive and convenient for human-machine dialogue; Automatic timing, gas supply, simple and practical experimental operation.
Technical parameters
| Standards | GB/T 12579 ASTM D892 JIS K2518 |
| Timing method | Automatic timing |
| Timing accuracy | ±1s |
| Temp control range | 0℃ ～ 99.9℃ |
| Temp control accuracy | ±0.5℃ |
| Low temp bath | 24±0.5℃ |
| High temp bath | 93.5±0.5℃ |
| Flow Meter | 16 ～ 160ml/min |
| Air source | Comes with air source, 3L/min |
| Gas diffusion head | 3000 ～ 6000ml/min, at 2.45Kpa |
| Timing | 0 ～ 99.99h |
| Test cylinder specification | 1000mL (special cylinder) |
| Instrument size | 680*380*550mm |
| Instrument weight | 35kg |
| Package size | 940*530*800mm |
| Package weight | 52kg Corrugated cardboard box |
| Refrigerator size | 380*420*430mm |
| Refrigerator weight | 12kg corrugated cardboard box |
Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.
Packing list
| S/N | Name | Quantity | Unit | Remarks |
| 1. | Host | 1 | Unit | |
| 2. | Portable refrigeration device | 1 | Set | |
| 3. | Graduated cylinder | 4 | Piece | 1000ML |
| 4. | Foam head | 4 | Piece | |
| 5. | Graduated cylinder plug | 4 | Piece | |
| 6. | Rubber tube | 2 | Meter | |
| 7. | Thermometer | 1 | Piece | |
| 8. | Power cord | 1 | Root | |
| 9. | Fuse tube | 1 | Piece | 10A |
| 10. | Instructions | 1 | Copy | |
| 11. | Packing list | 1 | Copy | |
| 12 | Certificate warranty card | 1 | Copy |
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
