PT100 Sensor Insulation Oil Corrosion Sulfur Tester RT ～ 200℃ Timing 1 ～ 9999min ASTM D1257B

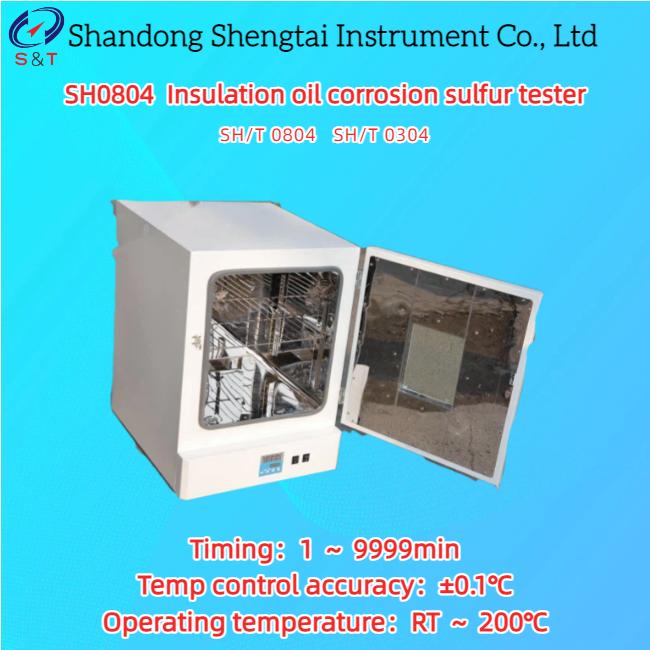

SH0804 Insulation oil corrosion sulfur tester
The SH0804 electrical insulation oil corrosive sulfur tester is designed and manufactured according to the SH/T0804 standard; A test method suitable for detecting corrosive sulfur in mineral insulating oils used in power equipment that affects the operation of electrical equipment.
| Product model | SH0804 |
| Product Name | Electrical Insulation Oil Corrosive Sulfur Tester |
| Manufacturer | Shandong Shengtai Instrument Co., Ltd |
| Testing items | Detection of corrosive sulfur in mineral insulating oil used in power equipment that affects the operation of electrical equipment |
| Complies with standards | SH/T0804 SH/T0304 ASTM D1275B |
| Simple technical features or parameters | microcomputer temperature control, using PT100 sensors |
Performance characteristics
● The surface of the instrument is treated with electrostatic spray molding, which is anti-corrosion and easy to clean

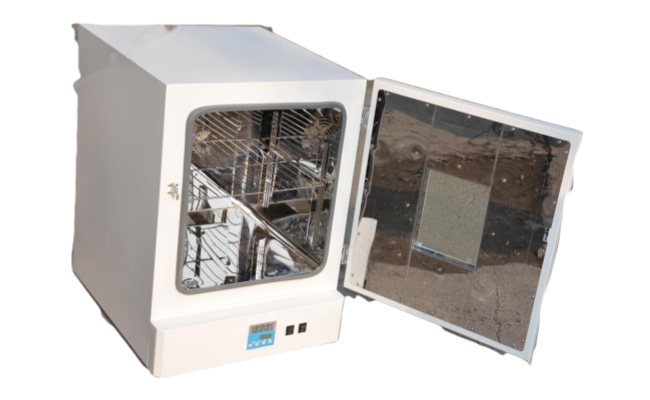

● Mirror stainless steel heating box with transparent observation window for easy operation and circular drum mode
● Microcomputer temperature control, using PT100 sensor and PID digital display, with high temperature control accuracy
● Equipped with a dedicated digital display timer, with time alarm function
Technical parameter
| Standard | SH/T0804 SH/T0304 |
| Operating temperature | RT ～ 200℃ |
| Temp control accuracy | ±0.1℃ |
| Timing | 1 ～ 9999min |
| Temp control mode | Microcomputer temp control |
| Sensor | PT100 sensor |
| Display mode | Digital display |
| Standard silver test piece | cold-rolled, 20 × 40× 0.5mm, purity 99.99 |
| Standard copper sheet | purity 99.9%, thickness 0.125-0.250mm, angle 60 degrees |
| Power supply | AC220V 50Hz |
| Power | 1.5KW |
| Instrument size | 450*510*620mm |
| Instrument weight | 17.6kg |
| Package size | 520*620*690mm |
| Package weight | 20kg carton |
Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.
Packing list
| S/N | Name | Quantity | Unit | Remarks |
| 1 | Host | 1 | Set | |
| 2 | Standard silver test pieces | 2 | Piece | |
| 3 | Standard copper sheets | 2 | Piece | |
| 4 | 100ml Ground flask | 2 | Piece | With plug |
| 5 | 250ml Grinding bottle | 2 | Piece | |
| 6 | Temperature sensor | 1 | Piece | On the instrument |
| 7 | Power line | 1 | Copy | |
| 8 | Instructions | 1 | Copy | |
| 9 | Packing list | 1 | Copy | |
| 10 | Certificate of conformity | 1 | Copy |
Instrument Quality Assurance Certificate
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
Packaging and Delivery
1. Packaging of goods: standard wooden or cardboard boxes.
2. Internal packaging: Elastic pearl cotton packaging product, hardwood board+strong bandage to fix corners.
