Automatic Flavor Freezing Point Tester cold bath -20℃～80℃ speed 1200rpm GB/T14454.7

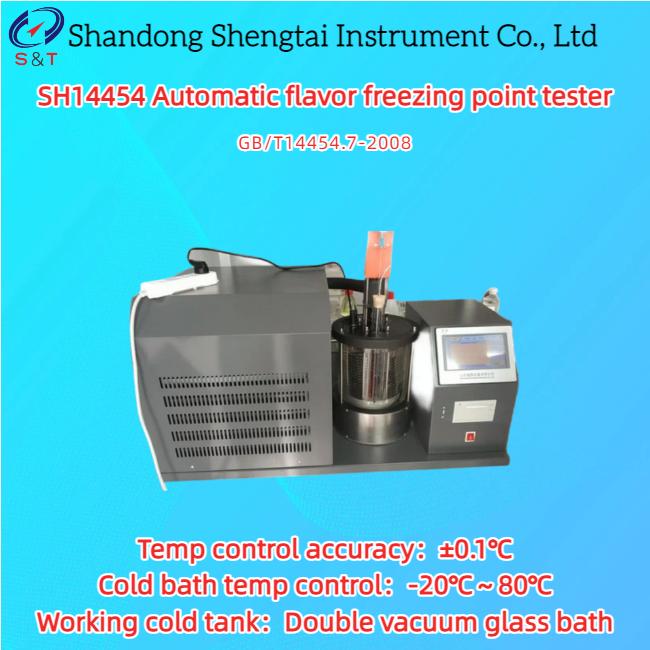

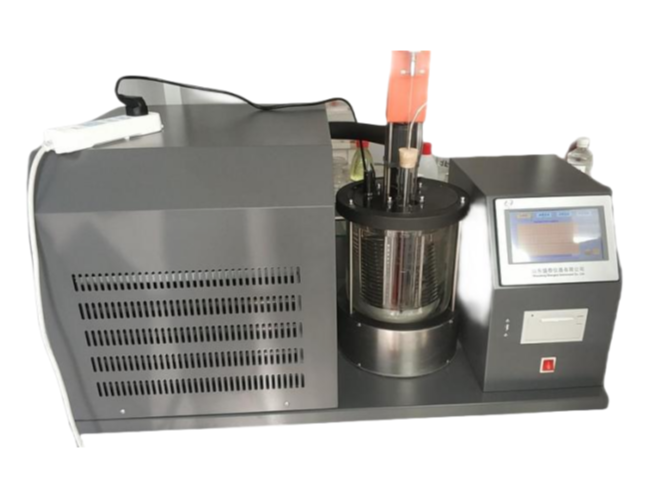

SH14454 Automatic flavor freezing point tester
Overview
SH14454 automatic essence freezing point (freezing point) tester is designed and manufactured according to GB/T14454.7-2008 (Determination of flavor freezing point) standard.
Instrument features
● Adopting embedded system design and imported PT100 temperature sensor, automatic detection throughout the entire test process;
● Color touch screen; Can store test results; Can view historical data;
● Print results on the instrument, mechanical automatic stirring, double stirring: double stirring refers to bath stirring and sample stirring;
● The experimental results can be exported through a USB flash drive and stored in a computer for multiple experimental comparisons.
| Product model | SH14454 |
| Product Name | Automatic essence freezing point (freezing point) tester |
| Manufacturer | Shandong Shengtai Instrument Co., Ltd |
| Testing items | Determination of freezing point of spices |
| Compliant with standards | GB/T14454.7-2008 |
| Simple technical features | Adopting imported PT100 temperature sensor, automatic detection throughout the entire test process; Color touch screen; Can store test results |
Technical parameters
| Power supply | AC220V±10% 50Hz |
| Working cold tank | Double vacuum glass bath |
| Cold bath temp control | -20℃～80℃ |
| Temp control accuracy | ±0.1℃ |
| Mixing of bath solution | Mixing motor automatic mixing |
| Power | 6W |
| Speed | 1200r/min |
| Sample mixing | synchronous reducer motor, 60 times/min |
| Refrigeration system | imported cascade refrigeration compressor |
| Ambient temp | ≤30℃ |
| Relative humidity | ≤85% |
| Whole power | About 1500W |
| Package size | 1060×620×610 mm |
| Package weight | 60 kg carton |
Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.
Packing list
| S/N | Name | Quantity | Unit | Remarks |
| 1 | Host | 1 | Set | |
| 2 | Test bottle rubber stopper | 1 | Piece | |
| 3 | Freezing point test tube | 1 | Piece | |
| 4 | Temperature sensor | 2 | Piece | |
| 5 | Power cable | 1 | Piece | |
| 6 | Instruction manual | 1 | Copy | |
| 7 | Packing list | 1 | Copy | |
| 8 | Certificate warranty card | 1 | Copy |
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
Packaging and Delivery
1. Packaging of goods: standard wooden or cardboard boxes.
2. Internal packaging: Elastic pearl cotton packaging product, hardwood board+strong bandage to fix corners.
