Fully Automatic Petroleum Product Vapor Pressure Gauge RT ～ 90℃ Constant 37.8℃ ASTM D323

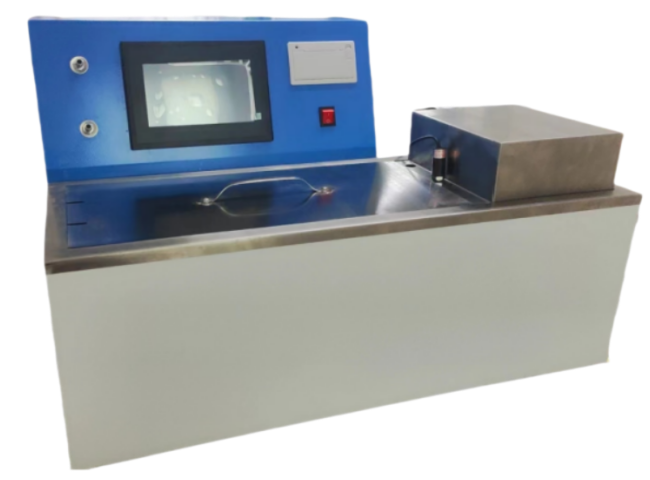

SK017 Fully Automatic Petroleum Product Vapor Pressure Gauge
The SK017 fully automatic petroleum product vapor pressure tester is designed and manufactured according to GB/T8017 "Petroleum Product Vapor Pressure Determination Method (Reid Method)".
Vapor pressure: Suitable for measuring the vapor pressure of gasoline, volatile crude oil, and other volatile petroleum products. This instrument mainly consists of a color LCD touch screen, a water bath and temperature control device, a vapor pressure bomb, a pressure sensor, mechanical rotation, etc. It has the characteristics of flexible use, easy movement, and printing.
Main performance characteristics
● 7-inch color touch screen, can be operated according to screen prompts without training.
● Automatic pressure detection, collection, calculation, automatic temperature control, automatic timing, automatic printing of results, ultra large capacity storage function, can store tens of thousands of data, and can be queried.
● The constant temperature water bath relies on a circulation system and has a stirring function, making the water bath temperature uniform without dead corners and achieving high temperature control accuracy.
Main technical parameters
| Heating power | 1.8KW |
| Mixing motor power | 15W |
| Pressure measurement range | 0-200KPa |
| Temp control range | RT ～ 90℃ |
| Temp control accuracy | ± 0.1℃ |
| Display accuracy | LCD display, 0.1KPa |
| Pressure range | 0-200KPa |
| Constant temperature water bath | 37.8℃ |
| Number of rounds hung | 2 rounds |
| Angle degree | The instrument automatically rotates at an angle of 30 degrees |
| Sensor | Pt100 |
| Working power supply | AC220V ± 10% 50HZ |
| Dimensions | 900 × 450 × 650mm |
| Weight | 50kg |
Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.
Continuous product development may require changes to product specifications and prices without prior notice.
Instrument Quality Assurance Certificate
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
Packaging and Delivery
1. Packaging of goods: standard wooden or cardboard boxes.
2. Internal packaging: Elastic pearl cotton packaging product, hardwood board+strong bandage to fix corners.
Package list
| Number | Name | Quantity | Unit | Note |
| 1 | Vapor pressure tester | 1 | Unit | |
| 2 | Steam pressure bomb | 2 | Set | |
| 3 | Pressure gauge | 2 | Piece | |
| 4 | Temperature sensor | 1 | Piece | |
| 5 | Instruction Manual | 1 | Copy | |
| 6 | Packing List | 1 | Copy | |
| 7 | Certificate of Conformity Warranty Card | 1 | Copy |
Optional accessories
1. The refrigerator can be set to a temperature of 0 degrees Celsius
2. Transfer the sample pot
