Four Workstations Grease Pressure Oil Separator φ8 Steel Ball Soap Base Grease GB/T 392

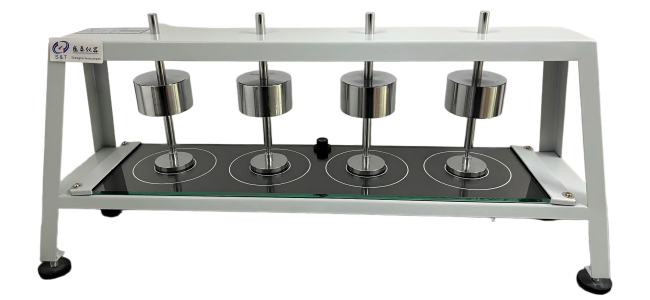

SY392 Grease pressure oil separator
Applicable standards
SY392 grease pressure oil separator is designed and manufactured according to the standard GB/T392.
This instrument is to use the pressure oil separator from the grease pressure out, and then determine the amount of oil pressure out.The required ambient temperature is 15 ~ 25℃. The weight is 1000g ± 10g.
Technical parameters
● Connecting rod: piston and hammer processing, plus Φ8 steel ball, after strict weighing, the total weight in the standard range (1000g + 10g).
● The studio temperature is required to be at T =15℃ ~ 25℃.
● Each 4 connecting rods and heavy hammer device.
● Size: 480 * 180* 320mm
● Weight: 15kg
Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.
Packing list
| S/N | Name | Unit | Quantity | Remarks |
| 1 | Bracket | Set | 1 | |
| 2 | Fat container | Piece | 4 | |
| 3 | Piston | Piece | 4 | |
| 4 | 8MM steel ball | Capsule | 6 | |
| 5 | Connecting rod | Piece | 4 | |
| 6 | Heavy hammer | Piece | 4 | |
| 7 | Instructions | Copy | 1 | |
| 8 | Packing list | Copy | 1 | |
| 9 | Certificate warranty card | Copy | 1 |
Instrument Quality Assurance Certificate
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
