Single Hole Diesel Fuel Distillate Boiling Range Tester Electric Furnace Heating ASTM D86

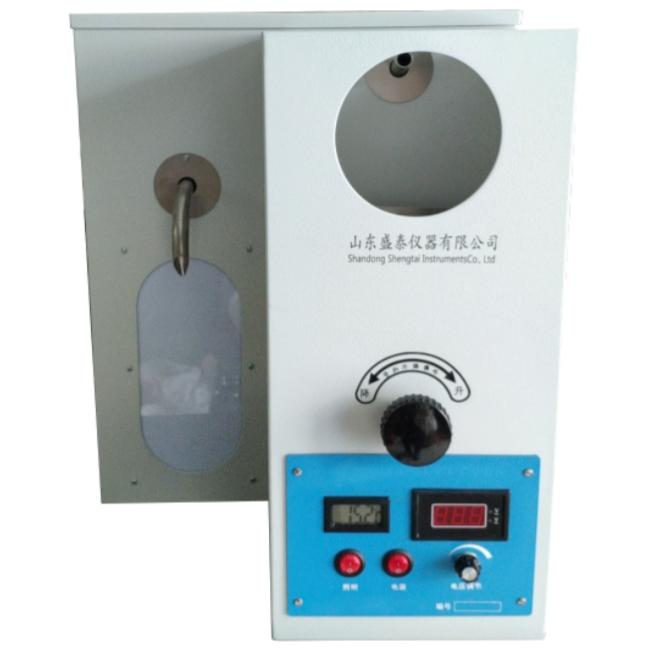

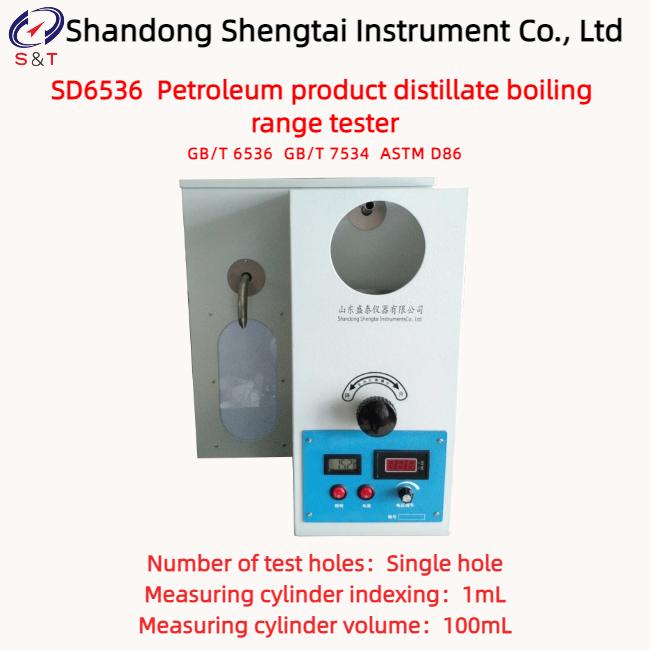

SD6536 Petroleum product distillate boiling range tester
Standard: GB/T 6536 GB/T 7534 ASTM D86
The SD6536 petroleum product distillation apparatus is designed and manufactured in accordance with the requirements of the Chinese national standards GB/T 6536 "Determination of Distillation of Petroleum Products" and GB/T 7534-2004 "Determination of Boiling Range of Volatile Organic Liquids for Industrial Use." It is suitable for distillation testing of gasoline, aviation gasoline, jet fuel, solvents with special boiling points, naphtha, diesel, distillate fuels, and similar petroleum products according to GB/T 6536, as well as for boiling range determination of industrial volatile organic liquids and raw material organic solvents in compliance with GB/T 7534.
The distillation range refers to the temperature range representing the evaporation characteristics from the initial boiling point to the final boiling point obtained by distilling the oil product under specified conditions.
Boiling range: The initial boiling temperature is the temperature at which the first drop of liquid begins to condense in the condenser during distillation, while the final boiling temperature is the temperature when the distillation is nearly complete. The interval between these two temperatures is referred to as the boiling range.
The petroleum product distillation apparatus is used to measure the boiling range of industrial volatile organic liquids and organic solvents for raw materials.
Petroleum product distillate boiling range tester
Distillation Tester for Petroleum products
Distillation Apparatus for Petroleum Products
Distillation Analyzer for Petroleum Oils ASTMD 86
Automatical ASTM D Standard Petroleum Distillation Range Testing Apparatus
Distillation Apparatus-Distillation Tester
Oil Distillation Apparatus-Petroleum Distillation Apparatus
Main technical parameters
| Working power supply | AC220V±10% 50Hz |
| Heating power of electric furnace | 1000W |
| Measuring cylinder volume | 100mL |
| Measuring cylinder indexing | 1mL |
| Distillation flask | 125mL, comply with GB/T6536 |
| Thermometer | Fully immersed rod type, with two scale ranges of (-2 to +300)℃ and (-2 to +400)℃ respectively, and a graduation of 1℃ (the thermometer can be selected according to requirements) |
| Electric furnace activity plate | Made of silicon carbide plate, with hole diameters of φ38mm and φ50mm |
| Number of test holes | Single hole |
| Dimensions | 400*430*500mm (L*W*H) |
| Instrument weight | 20kg |
Note: The appearance pictures, dimension, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
Packing list
| No. | Name | Quantity | Unit | Note |
| 1 | Host | 1 | Set | |
| 2 | Distillation flask (125 ml) | 1 | Piece | |
| 3 | Thermometer | 1 | Piece | |
| 4 | Glass tank (Ø100×240) | 1 | Piece | |
| 5 | Silicone stopper (No.3, No.4) | Each 1 | Piece | |
| 6 | Silicon carbide plates φ38, φ50 | Each 1 | Piece | |
| 7 | Beaker (100ml) | 1 | Piece | |
| 8 | Thermometer retaining ring (1#) | 2 | Piece | |
| 9 | Observation window glass | 1 | Piece | |
| 10 | File cover | 1 | Piece | |
| 11 | Power cord | 1 | Root |
