ASTM D1500 Petroleum Products Lab Color Tester Φ32mm Colorimetric Tube SD6540

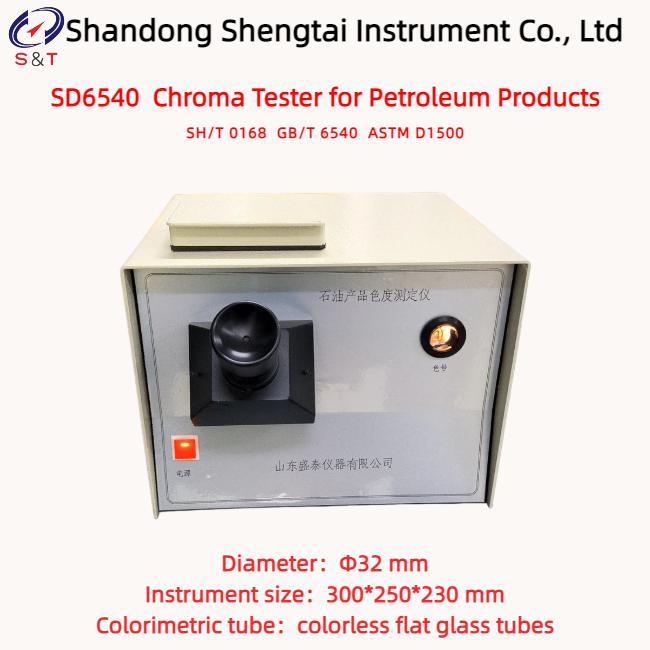

SD6540 Chroma Tester for Petroleum Products
Standard: SH/T 0168 GB/T 6540 ASTM D1500

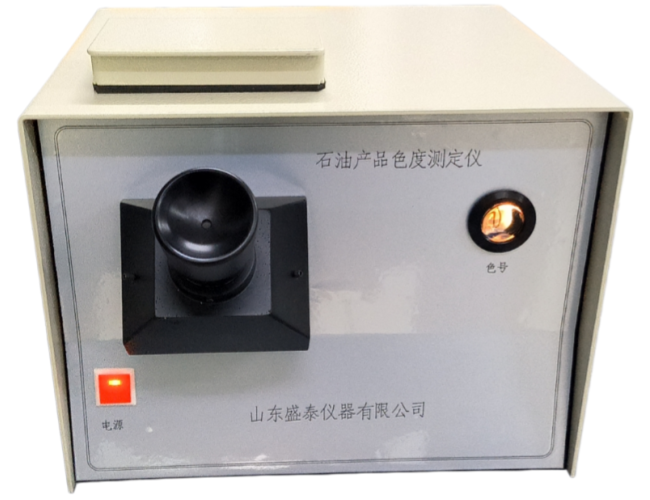

The SD6540 petroleum product colorimeter is designed and manufactured in accordance with SH/T 0168-92 "Petroleum Product Colorimetry Method" and GB/T 6540 standards. The measurement method involves injecting the petroleum product sample to be measured into a colorimetric tube and comparing it with a standard color chart to determine its chromaticity color number. A colorimeter is used to measure the color of various lubricating oils and other petroleum products
ASTM D1500 Oil Colorimeter / Petroleum Products Lab Color Tester
Portable Petroleum Oil Chroma Analyzer/Digital Colorimeter
ASTM D1500 Oil Lab Color Comparator Equipment, Oils Colorimeter
China Supplier Oil Lab Testing Equipment ASTM D1500 Oil Colorimeter / Lab Oil Color Tester for Petroleum Products
Factory Hot Sale ASTM D1500 Lubricating Oil Colorimeter Petroleum Products Color Tester
ASTM D1500 Petroleum Products Test Equipment Transformer Oil Color Tester
Performance characteristics:
● Observation eyepiece consists of concave lens and convex lens, can see two semicircular colors at the same time.
● Optical eyepiece with light adjustment and focus ability, easy to use.
● Reasonable structure design, convenient operation and use.
● Color numbers correspond to ASTM D1500, GB/T 6540 and ISO color numbers.
Technical Specifications:
| Light source | 220V, 100W, temperature of 2750±50K internal frosted emulsion bulb |
| Colorimetric tube | colorless flat glass tubes |
| Diameter | Φ32 mm |
| High | 120 ~ 130 mm |
| Standard color wheel | 26, Φ14 light hole, of which 25 respectively order # 1-25 color standard color glass piece, 26 hole for blank |
| Instrument size | 300*250*230 mm |
| Instrument weight | 7.5kg |
| Package size | 370*340*350mm |
| Package weight | 9kg carton |
Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to your company:
----The provided instruments and materials are brand new, comply with national quality standards, and come with manufacturer certificates of conformity;
----The provided materials and main components comply with the technical requirements specified in the technical documentation;
----The whole machine warranty period for the equipment is one year (excluding normal wear and tear of consumable parts).
----For instrument quality issues arising during the warranty period, our side will be responsible for free repairs. For equipment failures caused by the user's responsibility, our side will handle the repairs at a reasonable charge.
----Lifelong discounted spare parts supply and whole-machine maintenance and repair services.
----After the expiration of the warranty period, our company will only charge for the cost of repairs and technical services when the user requires them.
Packing list
| S/N | Name | Number | Unit | Remarks |
| 1 | Host | 1 | Set | |
| 2 | Colorimetric tube | 4 | Piece | |
| 3 | Creamy white internal frosted bulb | 1 | Piece | |
| 4 | Fuse tube | 1 | Piece | 10A |
| 5 | Operating instruction | 1 | Copy | |
| 6 | Packing list | 1 | Copy | |
| 7 | Certificate of approval | 1 | Copy |
