Gasoline Engine Oil Evaporation Loss Meter RT ～ 250 ± 0.1℃ Noak Method ASTM D5800

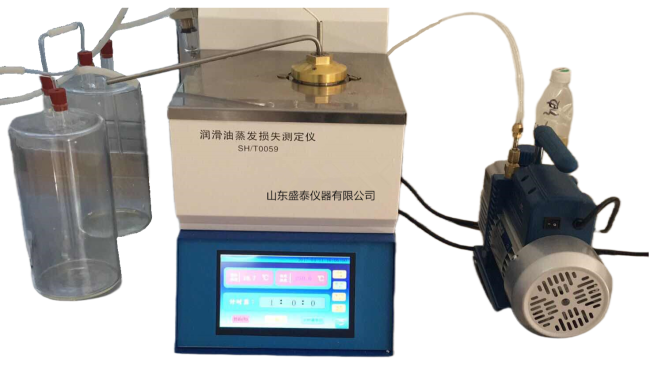

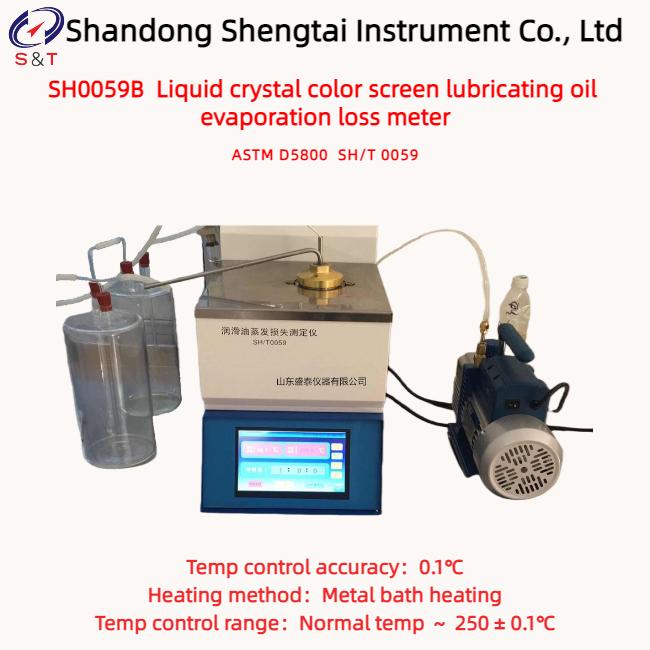

SH0059B Liquid crystal color screen lubricating oil evaporation loss meter
SH0059B LCD Color Screen Lubricating Oil Evaporation Loss Meter is an ASTM D5800 developed and produced by our company in accordance with the requirements of the Chinese petrochemical industry standard SH/T 0059-2010 "Determination of Lubricating Oil Evaporation Loss (Noak Method)". This instrument is suitable for heating lubricating oil and lubricating base oil under certain conditions for 1 hour, and the evaporated oil is carried out by air. Measure the evaporation loss of the sample based on the difference in sample mass before and after heating.
Evaporation loss
The mass loss of volatile oil vapor generated by heating the lubricating oil sample in the crucible under constant airflow extraction when using the Noak method for testing.
Method Summary
Place a sample of a certain quality in an evaporation crucible, and measure the mass loss of the sample after 60 minutes under constant airflow at 250℃.
Lubricating Oil Evaporation Loss Tester (NOACK Volatility Test) ASTM D5800
ASTM D5800 Standard Test Method for Evaporation Loss of Lubricating Oils by the Noack Method
ASTM D5800 DIN51581 Lubricating Oil Evaporation Loss Tester Vaporization Losses Analyzer Loss on Heating Equipment
Noack Method Lube Oil Evaporation Loss Meter by ASTM D5800 DIN51581
Performance characteristics
● Metal bath heating device, safe and environmentally friendly;Wood alloy is added to the bath body for better heat transfer.
● Imported precision differential pressure gauge, to ensure accurate pressure.
● Equipped with special vacuum suction system, precision needle valve pressure regulating system, imported needle valve, to ensure accurate flow regulation.
● Intelligent liquid crystal touch screen, automatic temperature control, input quality, automatic calculation of evaporation loss, storage of calculation results, timing alarm
Technical Parameters
| Applicable standard | SH/T 0059 ASTM D5800 A method |
| Temp control method | digital PID temperature control |
| Temp control range | RT ～ 250 ± 0.1℃ |
| Temp control accuracy | 0.1℃ |
| Heating method | Metal bath heating |
| Pressure regulation | High-precision needle valve |
| Suction method | vacuum pump |
| Differential pressure gauge | imported precision inclined tube differential pressure gauge |
| Instrument size | 380 * 360 * 450mm |
| Weight | 28kg |
Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.
Packing list
| S/N | Name | Unit | Quantity | Remarks |
| 1 | Lubricating oil evaporation loss tester | Set | 1 | |
| 2 | Evaporation crucible | Piece | 1 | |
| 3 | Reamer | Piece | 1 | |
| 4 | Temperature sensor | Piece | 1 | |
| 5 | Crucible stand | Piece | 1 | |
| 6 | Crucible wrench | Piece | 1 | |
| 7 | Wood alloy | Piece | 1 | |
| 8 | Vacuum pump | Set | 1 | |
| 9 | Power cord | Piece | 1 | |
| 10 | Instruction manual | Copy | 1 | |
| 11 | Certificate of Conformity Warranty Card | Copy | 1 |
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to your company:
----The provided instruments and materials are new goods that comply with national quality standards and come with manufacturer certificates;
----The provided materials and main components comply with the technical requirements specified in the technical documentation;
----The overall equipment warranty period is one year (excluding normal wear and tear of consumable parts).
----For any instrument quality issues arising during the warranty period, we are responsible for free repairs. If equipment malfunctions due to the user's fault, we will repair it at a reasonable charge.
----Lifetime discounted supply of spare parts and lifetime maintenance and repair of the entire machine.
----After the warranty period expires, our company will only charge the cost price for repairs and technical services when the user requires them.
