ASTM D445 Four Holes Full-Auto Kinematic Viscosity For Gear Oil RT ～ 100℃ 14L Bath

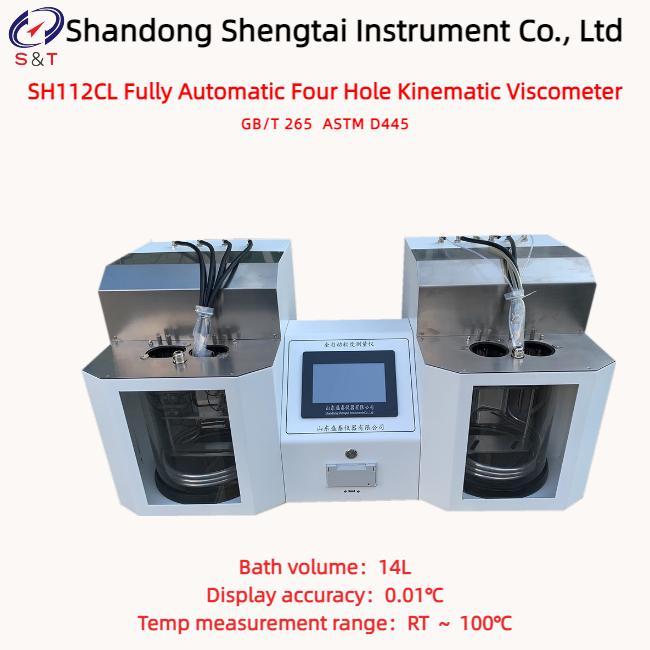

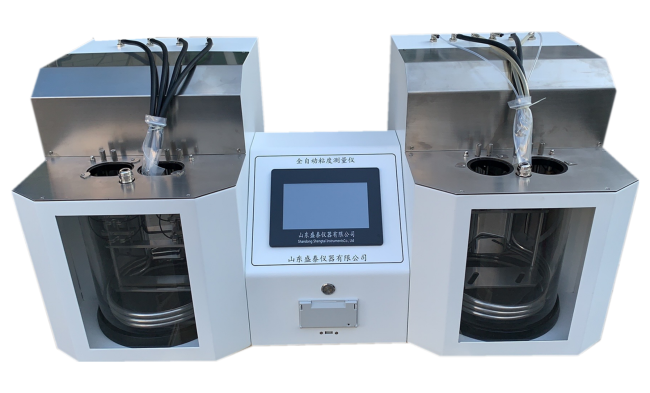

SH112CL Fully Automatic Four Hole Kinematic Viscometer
The SH112CL fully automatic four-hole kinematic viscosity tester is designed and manufactured in accordance with the requirements specified in the China National Standard GB/T 265 "Methods for Determination of Kinematic Viscosity and Calculation of Dynamic Viscosity of Petroleum Products" and is suitable for measuring the viscosity of light-colored petroleum products such as lubricating oil.
Kinematic viscosity: It is the product of the capillary constant of a calibrated glass capillary viscometer and the time it takes for a certain volume of liquid to flow under gravity through the viscometer at a constant temperature. This product represents the kinematic viscosity of the liquid measured at that temperature.
Technical Performance Parameters:
● Equipped with LED soft lighting for even illumination, facilitating observation.
| Standard | GB/T 265 ASTM D445 |
| Temp measurement range | RT ～ 100℃ |
| Display accuracy | 0.01℃ |
| Display mode | Human body sensor touch screen |
| Bath volume | 14L |
| Number of test holes | 2 holes on each side, enabling asynchronous measurement of two types of specimens simultaneously. Double-layer insulation; auxiliary heating automatic |
| Temp Setting | Adjustable for both left and right bathtubs |
| Timing Range | 0.0s ～ 99,999s |
| Timing accuracy | ±0.1s |
| Detection method | Pt100 stainless steel probe with built-in temp compensation |
| Result Output | It can also be equipped with a USB output function to transfer data to a PC for long-term storage |
| Printer | Equipped with a micro printer |
| Total power consumption | not more than 2000W |
| Operating power supply | AC 220V±10% 50Hz |
| Instrument dimensions | 850*380*550mm |
| Instrument weight | 38kg |
Note: The appearance images, dimensions, volume, and weight of the instrument are for reference only. If the instrument is updated, there may be slight changes without prior notice.
Instrument Quality Assurance Certificate
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
Packaging and Delivery
1. Goods packaging: standard wooden or cardboard boxes.
2. Internal packaging: Elastic pearl cotton packaging product, hardwood board+strong bandage to fix corners.
