Dual Holes Transformer Oil Condensation Point Analyzer RT ～ -70°C Alcohol Bath ASTM D97

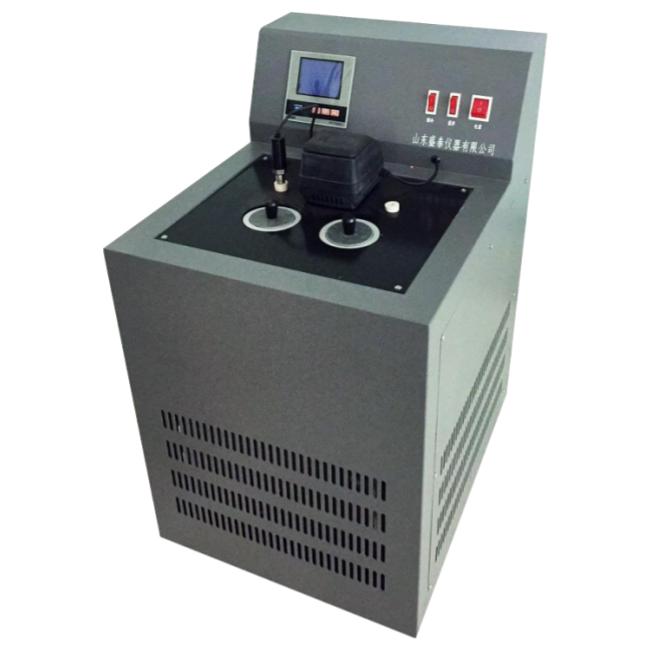

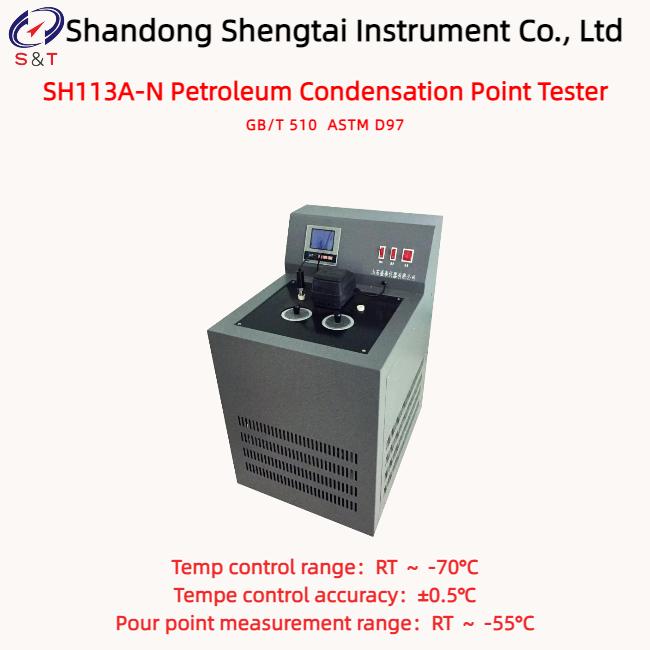

SH113A-N Petroleum Condensation Point Tester Alcohol Bath
The SH113A-N Petroleum Pour Point Determinator (Alcohol Bath) is designed and manufactured in accordance with the requirements of the Chinese National Standard GB/T 510 "Method for Determination of Pour Point of Petroleum Products," and is suitable for measuring the pour point of petroleum products using the method specified in the aforementioned standard.
The condensation point is the highest temperature at which the test oil, when cooled in a test tube under specified conditions, stops moving under its own weight, expressed in degrees Celsius (℃).
Performance Features:
● Utilizing a compression cooling mechanism, it can simultaneously conduct two sets of experiments.
● The output method is a small LCD display, with excellent temperature control stability.
● The host is cooled by alcohol bath, achieving rapid temperature reduction.
● Imported cascade compressor
Technical parameters
| Working power supply | AC220V ±10% 50Hz |
| Temp control range | RT ～ -70°C |
| Pour point measurement range | RT ～ -55°C |
| Tempe control accuracy | ±0.5℃ |
| Refrigeration system | New refrigeration compressor (dual compressor) |
| Ambient temperature | ≤30°C |
| Relative humidity | ≤85% |
| Power Consumption | No more than 1500W |
| Packaging dimensions | 480*530*590mm |
| Weight | 75kg |
Note: The appearance images and dimensions (volume and weight) of the instrument are for reference only. Updates to the instrument may involve minor changes, and no separate notice will be provided.
Instrument Quality Assurance Certificate
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
Packaging and Delivery
1. Goods packaging: standard wooden or cardboard boxes.
2. Internal packaging: Elastic pearl cotton packaging product, hardwood board+strong bandage to fix corners.
Packing List
| Number | Name | Quantity | Unit | Note |
| 1 | Host | 1 | Set | |
| 2 | Condensed glass test tube | 2 | Set | |
| 3 | Condensation point thermometer | 2 | Piece | |
| 4 | Power cord | 1 | Strip | |
| 5 | Fuse tube | 1 | Piece | |
| 6 | User Manual | 1 | Copy | |
| 7 | Packing List | 1 | Copy | |
| 8 | Certificate of Conformity Warranty Card | 1 | Copy |
